Dimplex Plug Kit for Opti-Myst Linear - OLFPLUG

Dimplex Plug Kit for Opti-Myst Linear

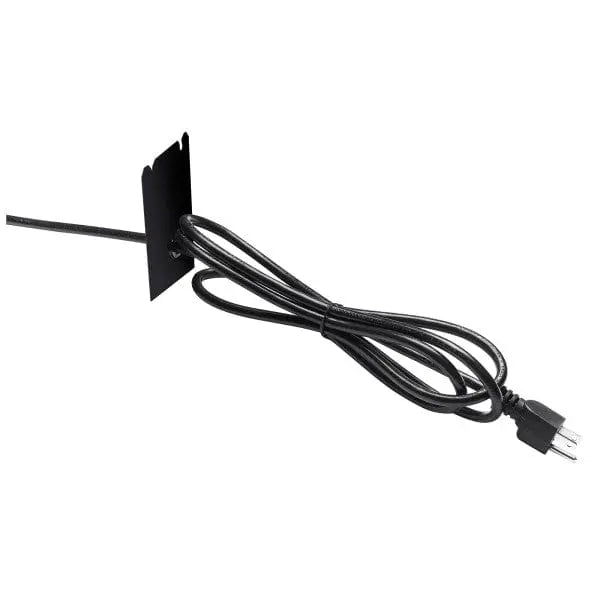

The Dimplex Plug Kit (model OLFPLUG) converts an Opti-Myst Linear fireplace from a hardwired connection to a standard 120 V household outlet. It saves calling an electrician to run a dedicated wired supply, which on a retrofit can be most of the installation cost.

Read This Before You Buy It for an 86"

This kit is 120 V only. That matters enormously on one model in the range.

The Opti-Myst 86" (OLF86-AM) produces no heat at all on 120 V. Dimplex's specification sheet is explicit: "When connected to 120 V, there will be no heat output, but heat functions will be active on the controls with only fans operating." Fitting this plug kit to an 86" means you get the flame, the lights and the sound — and a heat button that does nothing.

If you want heat from an 86", it must be hardwired to 240 V and this kit is not for you. On the 46" and 66" the kit is fine — both heat on 120 V, though both give more heat wired to 240 V.

Which Plug Kit Do You Need?

Dimplex makes different plug kits for different Opti-Myst products and they are not interchangeable:

Check the model number on your fireplace before ordering.

Specifications

Also worth knowing: the Opti-Myst Linear needs a water supply as well as power. If you would rather plumb it in than refill a container, we stock the CDFIPLUMB-KIT.
