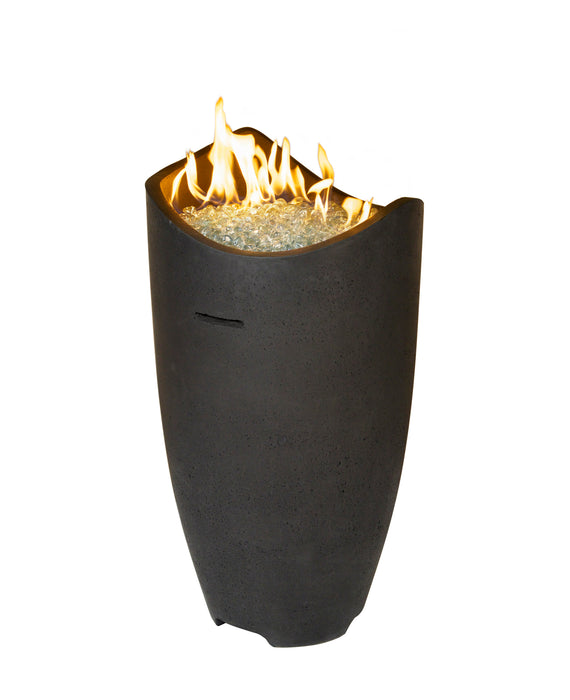

The American Fyre Designs Wave Fire Urn is a fire urn handcrafted from glass fiber reinforced concrete (GFRC), built around a 12" star stainless steel burner. It measures 20" diameter x 37 1/2" high. Order it with an access door for a propane tank inside, or without the door for natural gas only.
Key Features
- Handcrafted GFRC body in your choice of finish
- 12" star stainless steel burner
- Manual flame sensing control with a battery spark igniter: if the thermocouple does not sense a flame, the gas shuts off
- With the access door, a 5 gallon propane tank fits inside (tank not included)
- Certified to ANSI Z21.97 / CSA 2.41 as an outdoor decorative gas appliance
What to Order With It
Specifications
| Model number |
530-xx-11-M2xC (with access door); 530-xx-10-M2NC (without door, natural gas only) (xx = finish code; x = N for natural gas, P for propane) |
| Dimensions |
20" diameter x 37 1/2" H |
| Material |
Glass fiber reinforced concrete (GFRC) |
| Burner |
12" star stainless steel burner |
| Input, manual flame sensing valve |
60,000 Btu/hr, natural gas or propane |
| Fuel |
Natural gas or propane (natural gas only without the access door) |
| Finishes |
White Aspen (WA), Cafe Blanco (CB), Black Lava (BA), Smoke (SM), Travertine (TR), Dark Basalt (DB), Light Basalt (LB) |
| Certification |
ANSI Z21.97 / CSA 2.41, outdoor decorative gas appliance |
For outdoor use only. A qualified professional installer must make the gas connection and install the unit following the installation manual and local codes; check the manual for clearances before you choose a spot.
Downloads
Warranty
American Fyre Designs limited warranty from R.H. Peterson Co.: three years on the GFRC fire feature itself, and one year on valves, electrical components and controls (batteries excluded). It covers the original purchaser with proof of purchase, for single-family residential use in the United States or Canada, with installation by a qualified professional installer. Labor is not covered, and damage from burning wood or any fuel other than natural gas or propane, or from use in high wind, is excluded. Read the full terms in the Warranty section of the American Fyre Designs Fire Urns Installation and Owner's Manual (L-H2-065).
