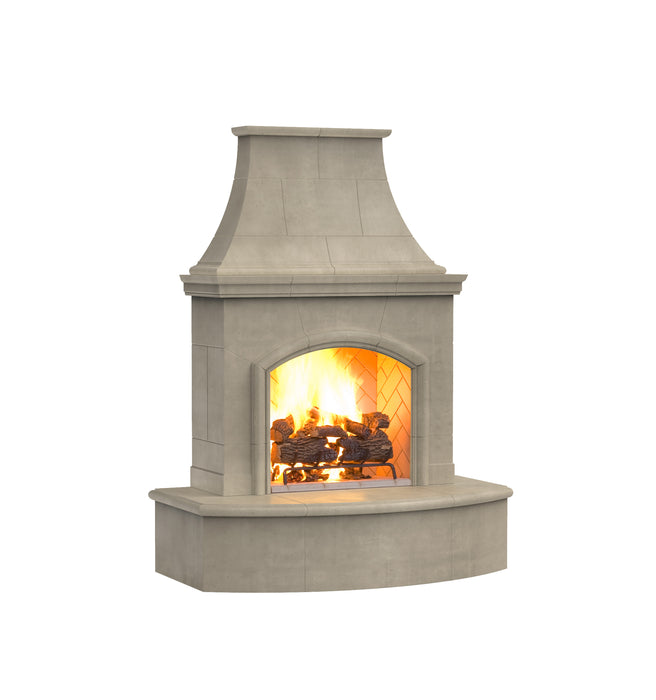

The American Fyre Designs Phoenix Fireplace is a modular outdoor gas fireplace handcrafted from glass fiber reinforced concrete (GFRC), 65" W x 36" D x 87" H. It comes as a vented model (017-xx-x-xx-RBC) or a vent-free model (117-xx-x-xx-RBC); vent-free fireplaces are blocked at the top and throat and are certified to go under a covered outdoor area. It is a fireplace body only: the burner and log set are ordered separately, sized to fit (see below).
Key Features
- Modular GFRC construction, assembled on site
- Four finishes: White Aspen (WA), Cafe Blanco (CB), Black Lava (BA), Smoke (SM)
- Herringbone firebox liners included

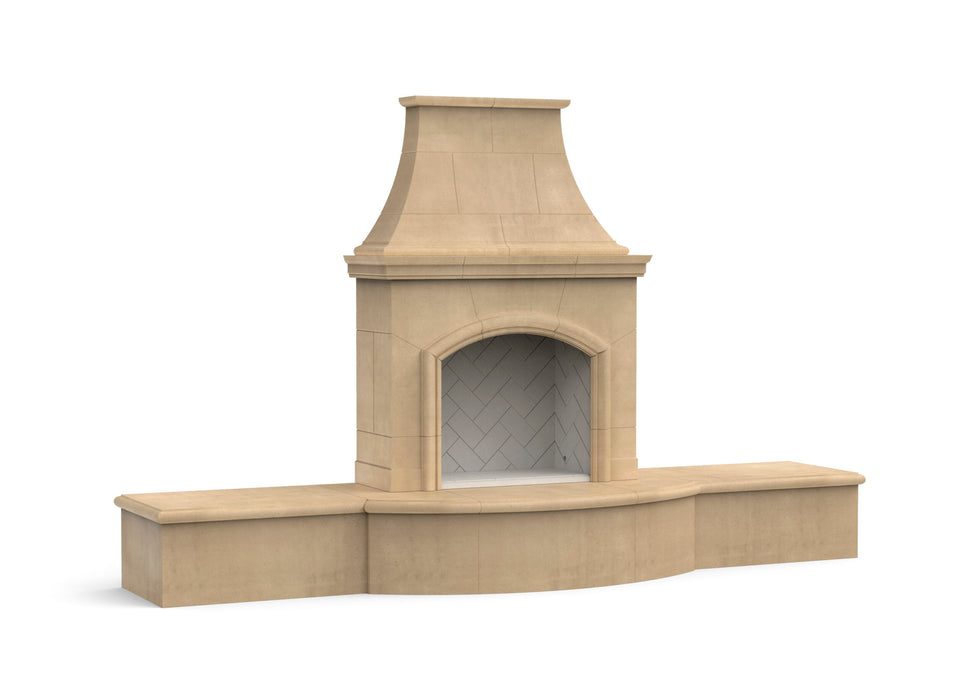

- Choice of 16" Radiused Bullnose hearth or 113" Extended Bullnose hearth
- Optional 2" recess on the hearth, or the hearth and body, for field cladding in tile, stone or other veneer
- Ships crated
What to Order With It
Specifications
| Model number |
Vented 017-xx-x-xx-RBC, vent-free 117-xx-x-xx-RBC |
| Dimensions |
65" W x 36" D x 87" H with the 16" hearth; the 113" Extended Bullnose hearth is 113" W x 36" D x 16" H |
| Weight |
1,100 lbs (7 pieces) with the 16" hearth |
| Material |
Glass fiber reinforced concrete (GFRC) |
| Finishes |
White Aspen (WA), Cafe Blanco (CB), Black Lava (BA), Smoke (SM) |
For outdoor use only. A qualified professional installer must make the gas connection and install the unit following the installation manual and local codes; check the manual for clearances before you choose a spot.
Downloads
Warranty
American Fyre Designs limited warranty from R.H. Peterson Co.: three years on the GFRC fire feature itself, and one year on valves, electrical components and controls (batteries excluded). It covers the original purchaser with proof of purchase, for single-family residential use in the United States or Canada, with installation by a qualified professional installer. Labor is not covered, and damage from burning wood or any fuel other than natural gas or propane, or from use in high wind, is excluded. Read the full terms in the Warranty section of the American Fyre Designs Phoenix and Mariposa Outdoor Fireplace Manual (L-H2-011).
