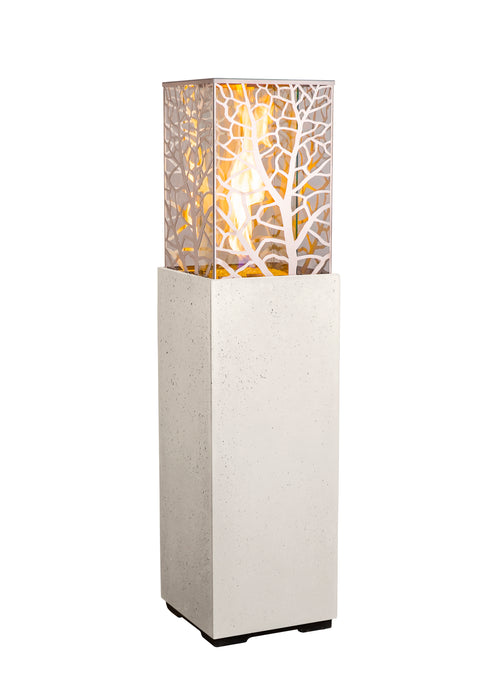

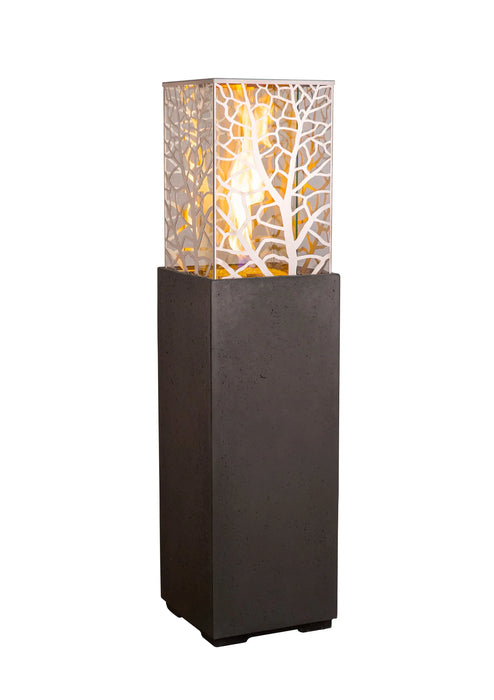

The American Fyre Designs Magnolia Fire Lantern is a fire lantern handcrafted from glass fiber reinforced concrete (GFRC), built around a lantern burner. It measures 16" wide x 16" deep x 66" high. It is made to order for natural gas or propane. At 66" tall it works along a path or beside a fireplace or other outdoor feature.
Key Features
- Handcrafted GFRC body in your choice of finish
- Lantern burner
- Manual flame sensing control with a battery spark igniter: if the thermocouple does not sense a flame, the gas shuts off
- Optional FyreStarter Bluetooth control: on/off and high/low from your phone or at the unit, plus USB-A and USB-C charging ports (needs 120V AC power)
- Access door with a tank retention frame holds a 5 gallon propane tank inside (tank not included)
- Certified to ANSI Z21.97 / CSA 2.41 as an outdoor decorative gas appliance
What to Order With It
- Fire media: about 6 lbs of Fyre Glass or Fyre Gems. Reflective Fyre Glass and Diamond Nuggets cannot be used in the Magnolia Lantern.
- Vinyl cover: vinyl protective cover (8134A)
- FyreStarter models need a 120V AC outlet near the unit.
Specifications
| Model number |
716-xx-11-M1xC; FyreStarter: 716-xx-11-H1xC (xx = finish code; x = N for natural gas, P for propane) |
| Dimensions |
16" W x 16" D x 66" H |
| Weight |
160 lbs |
| Material |
Glass fiber reinforced concrete (GFRC) |
| Burner |
Lantern burner |
| Input, manual flame sensing valve |
25,000 natural gas / 23,000 propane Btu/hr |
| Input, FyreStarter (high / low) |
28,000 Btu/hr natural gas, 27,000 Btu/hr propane (high); 13,000 Btu/hr (low) |
| Fuel |
Natural gas or propane |
| Finishes |

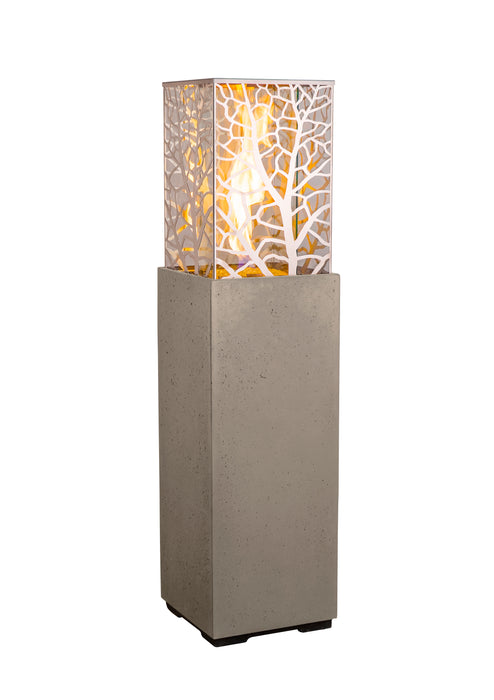

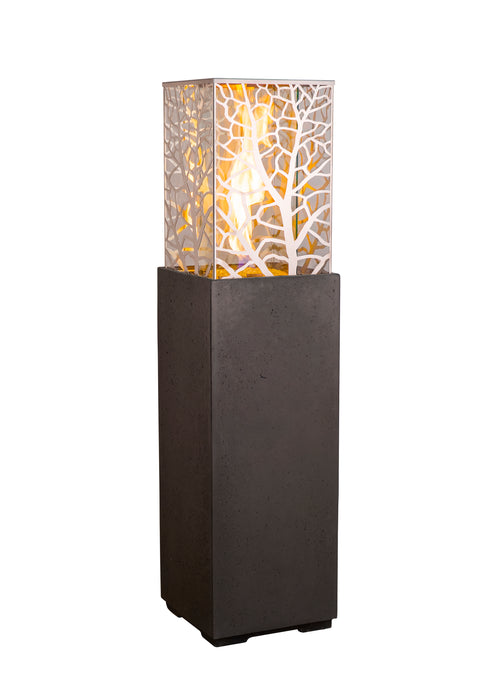

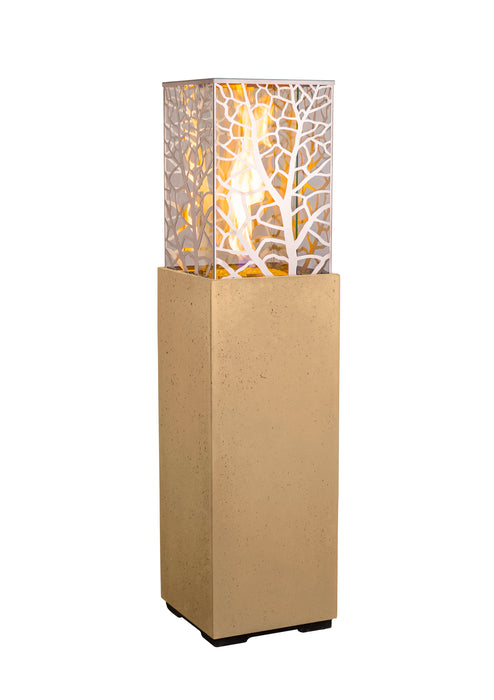

White Aspen (WA), Cafe Blanco (CB), Black Lava (BA), Smoke (SM), Travertine (TR), Dark Basalt (DB), Light Basalt (LB) |
| Certification |
ANSI Z21.97 / CSA 2.41, outdoor decorative gas appliance |
For outdoor use only. A qualified professional installer must make the gas connection and install the unit following the installation manual and local codes; check the manual for clearances before you choose a spot.
Downloads
Warranty
American Fyre Designs limited warranty from R.H. Peterson Co.: three years on the GFRC fire feature itself, and one year on valves, electrical components and controls (batteries excluded). It covers the original purchaser with proof of purchase, for single-family residential use in the United States or Canada, with installation by a qualified professional installer. Labor is not covered, and damage from burning wood or any fuel other than natural gas or propane, or from use in high wind, is excluded. Read the full terms in the Warranty section of the American Fyre Designs Lanterns Installation and Owner's Manual (L-H2-061).
