American Fyre Designs Contractor's Model with Moulding Outdoor Gas Fireplace, 67" - 045 / 145

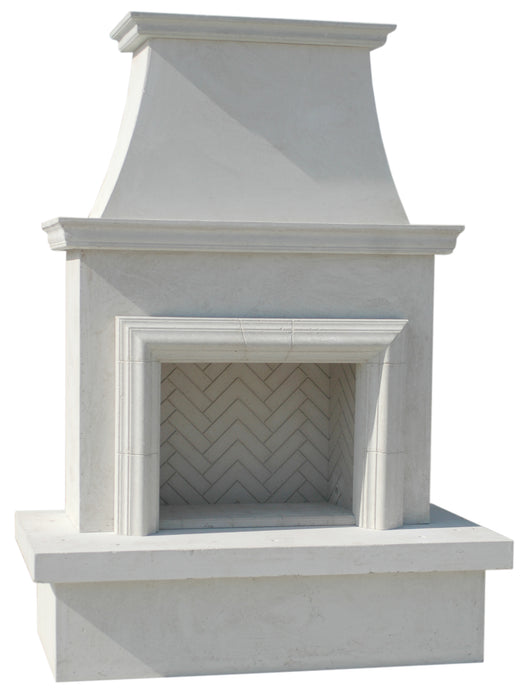

The American Fyre Designs Contractor's Model with Moulding is an outdoor gas fireplace shell in White Concrete GFRC, 67" wide, 37" deep and 91" high, with a moulding detail on the body. The hearth and body come recessed so you can clad them in your own stone, tile or other veneer. Choose the vented model (045) or the vent-free model (145), which is blocked at the top and throat and certified to go under a covered outdoor area such as a lanai. It is a fireplace body only: the burner and log set are ordered separately.
| Model number | Vented 045-11-A-WC-RBC; vent-free 145-11-A-WC-RBC |
| Type | Outdoor gas fireplace (burner and logs sold separately) |
| Dimensions | 67" W x 37" D x 91" H |
| Material | Glass fiber reinforced concrete (GFRC), White Concrete finish |
| Recess | Hearth and body recessed for field cladding |
| Gas connection | Key valve right side, gas line out the back |
| Certification | ANSI Z21.97 / CSA 2.41, outdoor decorative gas appliance |
For outdoor use only. A qualified professional installer must make the gas connection and install the unit following the installation manual and local codes; check the manual for clearances before you choose a spot.
American Fyre Designs limited warranty from R.H. Peterson Co.: three years on the GFRC fire feature itself, and one year on valves, electrical components and controls (batteries excluded). It covers the original purchaser with proof of purchase, for single-family residential use in the United States or Canada. Labor is not covered, and damage from burning wood or any fuel other than natural gas or propane, or from use in high wind, is excluded. Read the full terms in the Warranty section of the American Fyre Designs Contractor's Fireplace Installation and Owner's Manual (L-H2-023).
