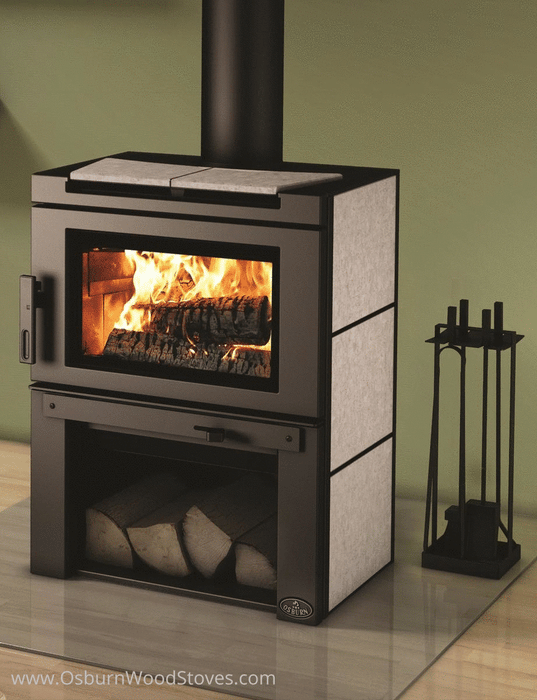

Osburn Matrix Wood Burning Stove with Blower
With the same sleek, modern style and vastly improved performance, the Osburn Matrix Wood Burning Stove with Blower will certainly bring a European touch to your home. Let the Matrix wood stove provided you the warmth, safety and coziness needed during these cold winters.
You can now personalize your device with the steel or soapstone top and side panel options from a local Quebec City mine, reminding us of the richness of our natural resources. Logs will easily fit under the large firebox, making the Matrix a practical and stylish heater. The Osburn Matrix Wood Burning Stove with Blower is equipped with a 130 CFM fan to ensure optimal heat distribution. Enjoy the comfort of winter more than ever before!
Features
- Blower included, up to 130 CFM
- Heats 500 to 2,100 sq ft with up to 75,000 BTU/h
- 2.4 cu ft firebox that takes logs up to 20"
- Maximum burn time of 8 hours
- EPA 2020 approved, non-catalytic, 2.3 g/h average particulate emissions
- Ceramic glass door with cast iron frame and glass air-wash system
- Firebox lined with refractory bricks for better heat distribution
- Stainless-steel secondary-air system
- Approved for alcove installation, and for mobile homes with a fresh air intake
- 3/16" steel body and 5/16" steel top
- Limited lifetime warranty
What to Order With It
The Matrix Wood Stove needs side panels and a top to be complete. Choose from each required group below.
Required – side panels (choose one):
Required – top (choose one):
Optional:
Performance
| Maximum heat output (dry cordwood) |
75,000 BTU/h (22 kW) |
| Overall heat output range |
14,200 – 44,500 BTU/h (4.16 – 13.04 kW) |
| Recommended heating area |
500 – 2,100 sq ft (47 – 195 m²) |
| Average overall efficiency (HHV) |
72% |
| Average overall efficiency (LHV) |
77% |
| Optimum overall efficiency |
79% |
| Optimum heat transfer efficiency |
76% |
| Average particulate emissions |
2.3 g/h (EPA / CSA B415.1-10) |
| Average carbon monoxide |
69 g/h |
| Maximum burn time |
8 hours |
| Overall firebox volume |
2.4 cu ft (0.068 m³) |
| EPA loading volume |
1.95 cu ft (0.055 m³) |
| Recommended log length |
16" (406 mm), loaded east-west |
| Blower |
Included, up to 130 CFM |
Specifications
| Combustion technology |
Non-catalytic |
| High-efficiency certified appliance |
Yes, EPA 2020 approved |
| Fuel type |
Dry cordwood |
| Maximum log length |
20" |
| Log positioning |
Loading over width |
| Chimney diameter |
6" |
| Flue outlet diameter |
6" |
| Type of chimney |
UL 103 HT (2100 °F) |
| Minimum chimney height (feet) |
12' |
| Baffle type |
C-Cast or equivalent |
| Approved for an alcove installation |
Yes |
| Approved for a mobile home installation |
Yes, with fresh air intake |
| Shipping Weight |
506 lb (230 kg) |
| Door type |
Single, glass with cast iron frame |
| Glass type |
Ceramic glass |
| Glass surface – dimensions (Width X Height) |
19 5/8" x 11 7/8" |
| Glass air-wash system |
Yes |
| Premium quality blower included (CFM) |
130 |
| Overall dimension (Height) |
36 7/8" |
| Overall dimension (Width) |
27 1/8" |
| Overall dimension (Depth) |
25" |
| Door opening – dimension (Height) |
8 3/4" |
| Door opening - dimension (Width) |
17 1/2" |
| Firebox – dimension (Height) |
11 7/8" |
| Firebox – dimension (Width) |
21" |
| Firebox – dimension (Depth) |
16 1/2" |
| Firebox lined with refractory bricks for better heat distribution |
Yes |
| Stainless-steel secondary-air system improving gas combustion |
Yes |
| Model |
Pedestal |
| Steel thickness – body |
3/16" |
| Steel thickness – top |
5/16" |
| USA standard (emissions) |
EPA |
| USA standard (safety) |
UL 1482, UL 737 |
| Tested and listed as per applicable standards |
By an accredited laboratory |
| Warranty |
Limited lifetime |
Clearances to Combustibles
Osburn publishes these as lettered dimensions A to F that are defined on the clearance drawings in the installation manual, not in words — so read this table with the manual open rather than assuming which letter is which wall. For planning, the controlling figure is the smallest: 10" with a single-wall connector pipe, 6" with a double-wall connector pipe (USA).
| Dimension |
Single wall (USA) |
Double wall (USA) |
| A |
11" (279 mm) |
6" (152 mm) |
| B |
16" (406 mm) |
16" (406 mm) |
| C |
10" (254 mm) |
7" (178 mm) |
| D |
14 1/2" (368 mm) |
9 1/4" (235 mm) |
| E |
25 1/2" (648 mm) |
25 1/4" (641 mm) |
| F |
19 3/4" (502 mm) |
16 1/2" (419 mm) |
Other approved configurations
-
Lowered ceiling (double wall, minimum ceiling height 77" / 196 cm): A 9", B 19", C 7", D 12 1/4", E 28 1/4", F 16 1/2"
-
Alcove (double wall, minimum alcove height 77" / 196 cm): A 9", B 19", D 12 1/4", E 28 1/4"
-
Mobile home (double wall, fresh air intake required): A 11", B 18", C 11", D 14 1/4", E 27 1/4", F 20 1/2"
Floor Protection
On a combustible floor a non-combustible pad must extend 16" (406 mm) in front of the door opening and 8" (203 mm) to each side and to the rear.
