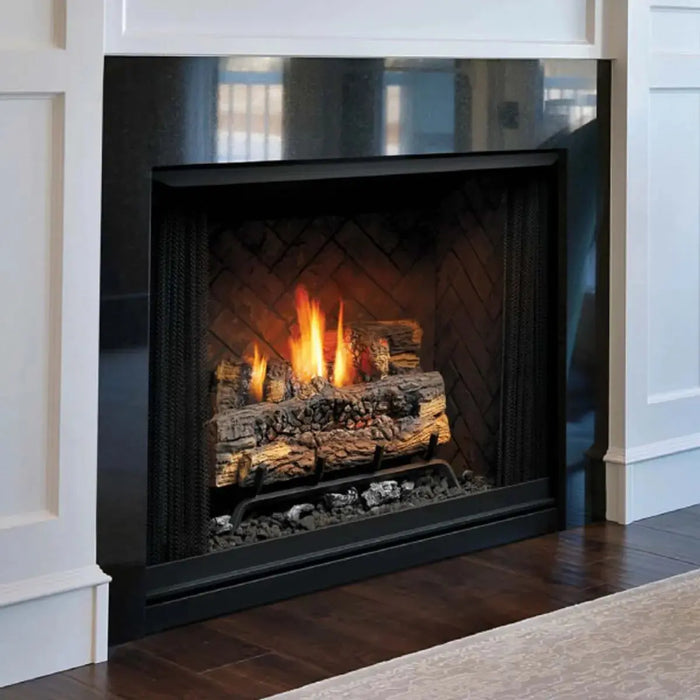

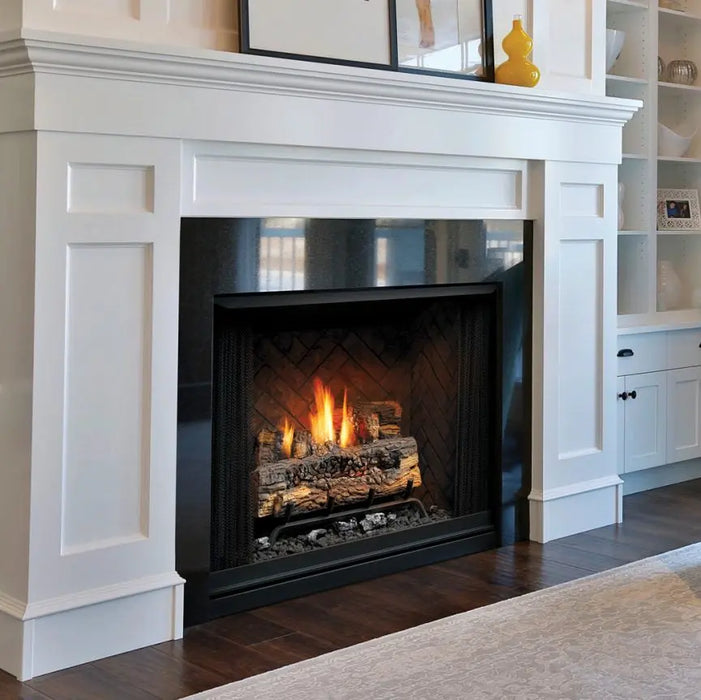

Kingsman 42" ZVFCV42 Zero Clearance Clean View Circulating Universal Vent Free Firebox, the ultimate in Zero Clearance Vent-Free Fireplaces for new home construction or renovation, and your most suitable option for installation anywhere throughout your home.
The Kingsman Zero Clearance Clean View Circulating Universal Vent Free Firebox is available during a 42-inch box. This firebox requires the utilization of a manual or a remote-ready GLVF24 burner assembly. you'll choose from LOGF18 or LOGF24 fiber log assembly. For your peace of mind, this fireplace has an ODS, or Oxygen Density Sensor, to consistently monitor the air in the room and automatically shuts the gas off if the oxygen levels in the room drop below safe levels. Another great feature of this firebox is that the black heat deflector. This canopy hood protects any items placed above the firebox from heat.
STANDARD FEATURES
Color: Black
Size: 34 Inch
Vent Type: Vent Free
Fireplace Type: Standard Firebox
Decorative pull screens included
Burners use matchless piezo ignition system
Fuel Type Options: Natural Gas, Propane Gas
Standard wall switch control for millivolt burners
Uses either LOGF18 or LOGF24 fiber log assemblies
Black heat deflector canopy hood protects mantels and wooden shelves
Hi/low Millivolt or manual valve with variable adjustment of flame and BTU
Must be completed with manual or remote ready GLVF24 burner assemblies
ODS sensor monitors room air and provides gas shut off if oxygen is below acceptable levels
* Please Note: This item is a vent free appliance and installation of it may be prohibited in your jurisdiction. Customers are responsible for checking local codes and regulations prior to purchase.
Technical Specifications
Max BTU Output: 35,001 to 40,000
BTU Input Ratings: 38,250 NG / 38,000 LP
Framing Dimensions: 42 1/2" W 40 3/8" H and 20 5/16" D
Overall Unit Dimensions: 42 7/16" W 40 5/16" H and 20 3/16" D
Firebox opening dimensions: 33 7/8" FW 26 7/8" BW 29 1/8" H and 15 1/2" D
DIMENSIONS
OPTIONAL ACCESSORIES
Fan Kit
Blower with variable speed control
Surrounds
ZCV42S1BL – Hearth Mount 4” Wide Coverage:44 5/8” W x 38 1/8” H
ZCV42S1PFBL – Picture Frame 4” Wide Coverage:44 5/8” W x 40 1/8” H
ZCV42S2PFBL – Surround – Picture Frame 1 5/8” Wide Coverage:40 1/8” W x 35 5/8” H
Thermostat (Millivolt)
Wall Mount Millivolt Thermostat or Programmable Thermostat
Remote Control (Millivolt)
On/Off, Thermostat On/Off, Thermostat On/Off modulating, Thermostat On/Off modulating and fan control
