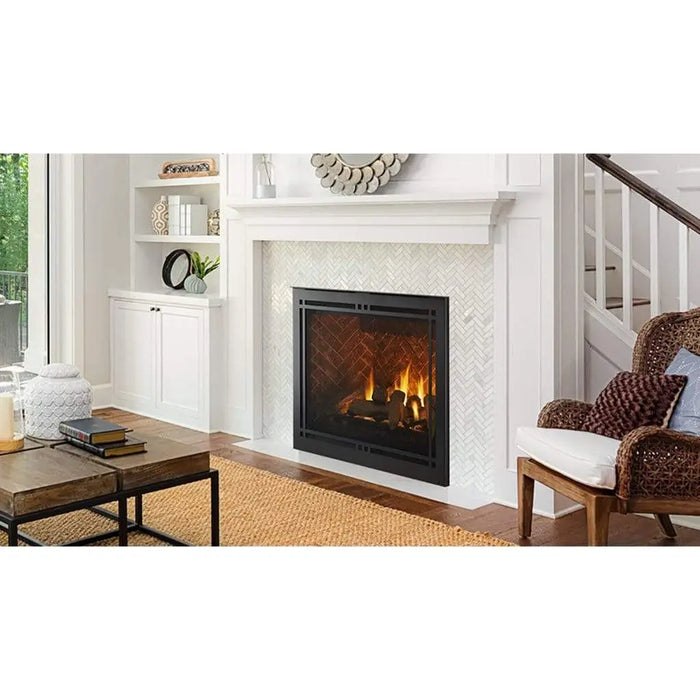

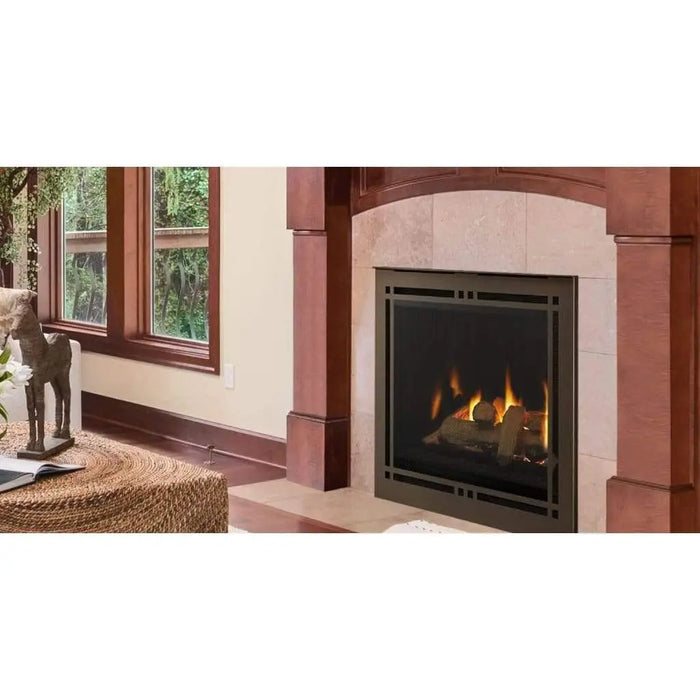

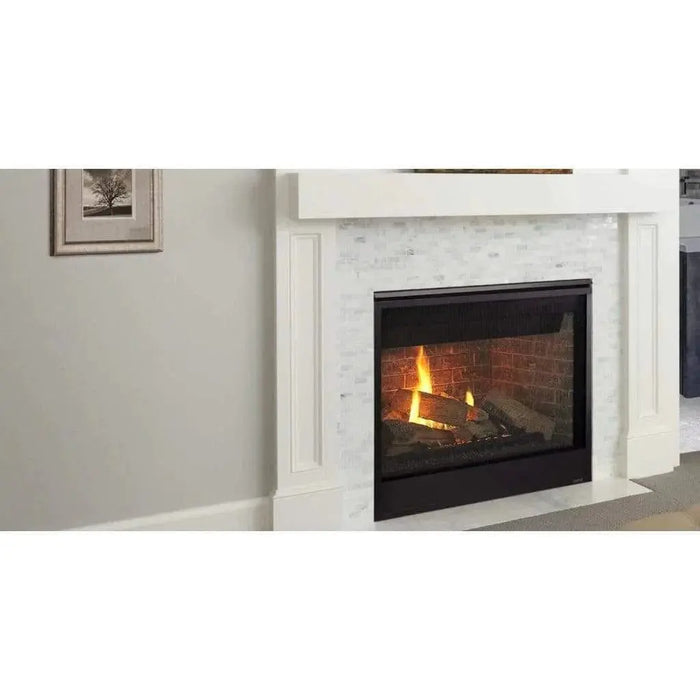

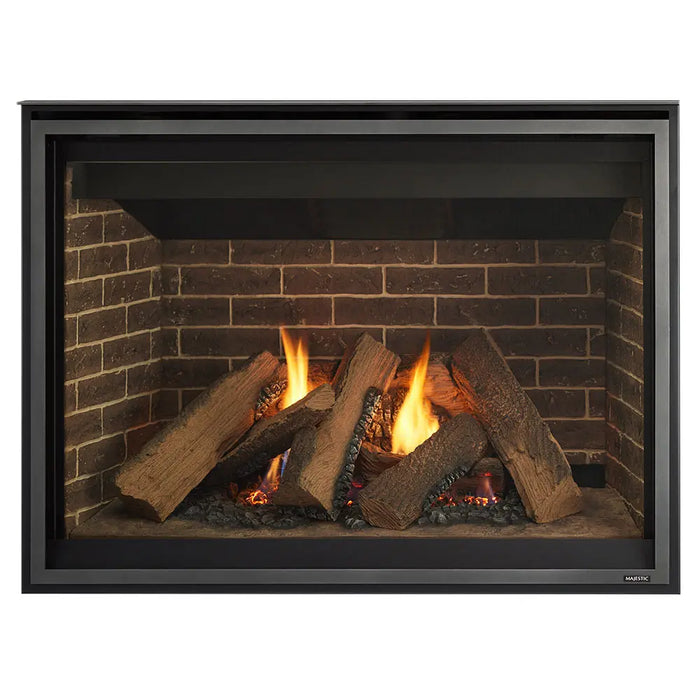

Majestic Meridian 36" Top/Rear Direct Vent Gas Fireplace

Create an inviting place where the best moments begin with the big, bold and comfy Majestic Meridian 36" Traditional Direct Vent Natural Gas Fireplace. Gather 'round dancing flames and warm up with generous heat. Even run your fireplace with a smart speaker. With on-trend styling to fit your look, it will be your favorite spot in the home.

Order Numbers: MER36N - Natural Gas; MER36L - Liquid Propane

What's Included

• NG & LP Fireplace Unit

• 12 ft Wall switch wire

• Tempered Glass

• 6 Ceramic Fiber Logs

• Glowing Embers

• Battery Backup

• IntelliFire Touch Ignition System

Features

• IntelliFire Touch® - Control your fireplace with IntelliFire App, Smart Speaker, touchscreen remote control or wireless wall switch.

• Dynamic Thermostat - Tapers flames with rising temps to maintain comfort level.

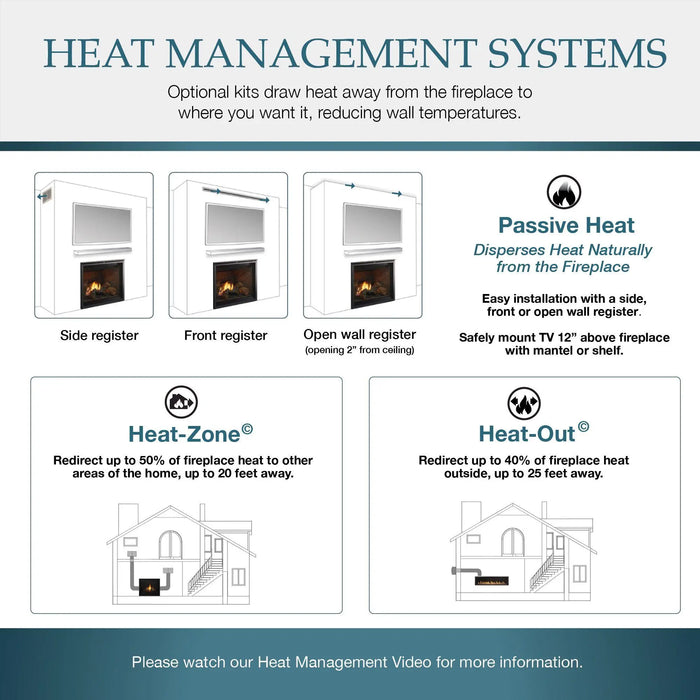

• Heat Management - Put the heat where you want it, when you want it.

• Direct Vent Technology - Removes any fumes or combustion exhaust efficiently and effectively from your home.

Venting Notes

• Requires 8" DVP pipe.

• Approved for use with SLP pipe. Restrictions apply. See Installation manual for venting specifications.

• Approved for use with PVLP-SLP, PVI-SLP-B and PVV-SLP with power vent wire harness and IFT-RC400 remote (order separately). See venting section of manual.

What to Order With It

The Majestic price book lists the following as required to complete this unit. They are sold separately.

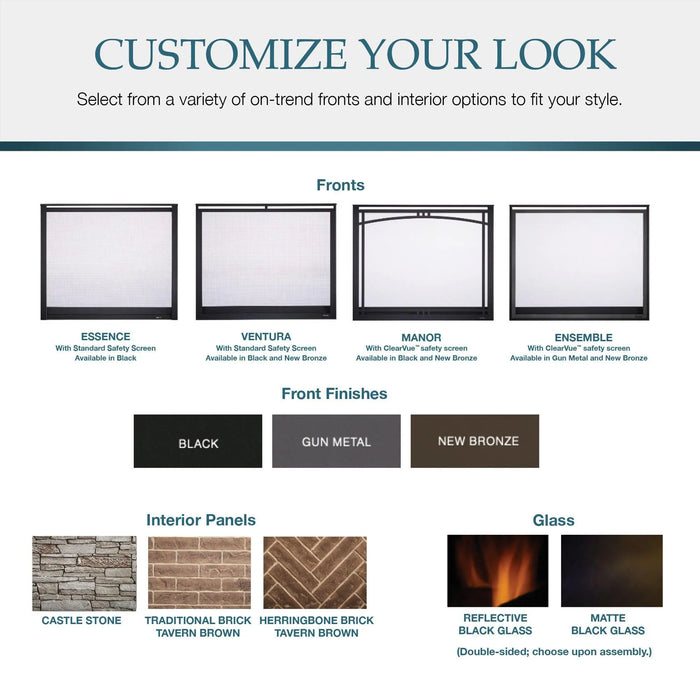

Required front (choose one):

• Essence inside fit front - Black (ESSENCE36BK)
• Essence inside fit front with ClearVue mesh - Black (ESSENCECV36BK)
• Ventura overlap front - Black (VENTURA36BK)
• Ventura overlap front - New Bronze (VENTURA36NB)
• Manor arched overlap fit front with ClearVue mesh - Black (MANOR36BK)
• Manor arched overlap fit front with ClearVue mesh - New Bronze (MANOR36NB)
• Ensemble overlap front with ClearVue mesh and Gun Metal trim (ENSEMBLE36GM)
• Ensemble overlap front with ClearVue mesh and New Bronze trim (ENSEMBLE36NB)

Optional - Liner Kit:

• Brick interior panels - Traditional - Tavern Brown (BRICK36MTB)
• Brick interior panels - Herringbone - Tavern Brown (BRICK36MTBH)
• Brick interior panels - Castle Stone (BRICK36MCS)
• 3 Pc - 2-Sided Reflective Black Glass/Matte Glass Liner (GL-36M)

Optional - Fans:

• Fan kit 160 CFM (GFK-160A) - includes rheostat and temperature sensor

Optional - Heat Management:

• Passive Heat trim kit for side discharge (PH-SIDETRIM) - includes 2 side registers; Starting collars sold separately
• Passive Heat Vent Trim Kit For Front Discharge (PH-FRTTRIM-36) - 36"; Starting collars sold separately
• Passive Heat Kit starting collars (PH-MR) - requires a side or front trim kit or use open top chase
• Heat out kit (HEAT-OUT-GAS) - includes termination cap, 25' of 6" round duct, fireplace adapter, damper, wall switch and 350CFM fan at termination
• Required adaptor for HEAT-ZONE-GAS when not being paired with Passive Heat (HZMR-ADP)
• Heat-Zone Kit (HEAT-ZONE-GAS) - includes fan, 20' of 6" round duct, vent, wall adapter & on/off control. Wire Plug Assembly 26D0619 required if controlling w/RC400 remote. Used in IFT units with ACM & not a GFK fan. Compatible for up to 2 HEAT-ZONE-GAS kits. See manual

Optional - Controls:

• Battery backup wall switch kit for units with IFT control systems (BATTERY-WSK) - Includes: On/Off Wall Switch, USB-C Port, Battery Backup, Cover Plate, 12' Wire Harness
• IntelliFire Wi-Fi Module (IFT-WFM) - works with the IntelliFire iOS and Android app. Use to control all the features of your fireplace via a smart device. An RC400, RC450 or RC150 is required for thermostat control
• IntelliFire Touch AUX Module (IFT-ACM) - Must order if adding Fan, Lights or Power Vent and want to use the IFT-WFM. Do not need to order if using IFT-RC400 (includes IFT-ACM)
• IntelliFire Touch white wireless wall switch (IFT-RC150) - on/off, cold climate, battery strength indicator
• IntelliFire Touch black remote control, docking station and auxiliary control module (IFT-RC400) - on/off, flame height, thermostat mode, fan control, child lock, cold climate, timer mode, hot indicator, lights, on-screen maintenance and troubleshooting notifications

Optional - Venting:

• Exterior Heat-Zone brick extension kit (HEAT-OUT-BEK)

Price book notes: Flame adjustment requires RC400 or IFT-WFM.

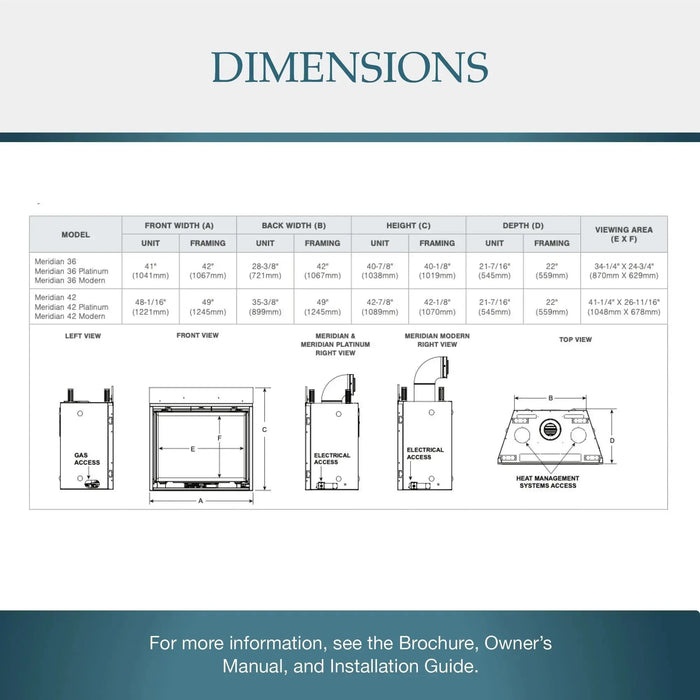

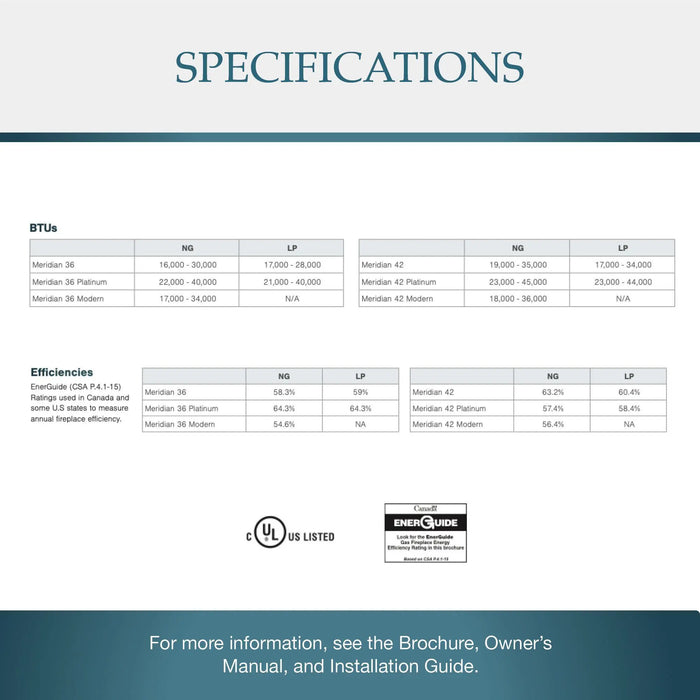

Specifications

Downloads

• Meridian Series Brochure

• Meridian Series Installation Manual

• Meridian Series Owner's Manual

• Meridian 36 Service Parts
• Meridian 36 Architect Guide
• Installation Manual - Decorative Front (Essence)

• Installation Manual - Decorative Front (Ventura, Manor, Ensemble)
• Installation Manual - Brick Refractory
• Installation Manual - Glass Liner Kit
• Installation Manual - GFK-160C

• Installation Manual - IntelliFire Touch IFT-ACM

• Installation Manual - IntelliFire Touch IFT-RC150

• Installation Manual - IntelliFire Touch IFT-RC400 / IFT-ACM
• IntelliFire Touch IFT-RC150 User Guide

• IntelliFire Touch IFT-RC400 - User Guide

• Field Service Guide for IntelliFire Control System
• Installation Instructions - Heat-Zone Adapter
• Installation Instructions - Passive Heat Kit
• Installation Instructions - WiFi Module
• Vent Component
