Majestic Echelon II 48" Linear Direct Vent Natural Gas Fireplace

SKU ECHEL48IN-C
Original price $5,779.00 - Original price $5,779.00
Original price
$5,779.00
$5,779.00 - $5,779.00
Current price $5,779.00

Free Shipping and No Sales Tax on All Orders


Please contact us directly to request quote for Majestic products.

  • FREE SHIPPING : All Over United States

  • NO SALES TAX : All USA Orders/except WI

  • SPEAK TO AN EXPERT : Call 888-486-2909 or email at cs@dreamwoodliving.com

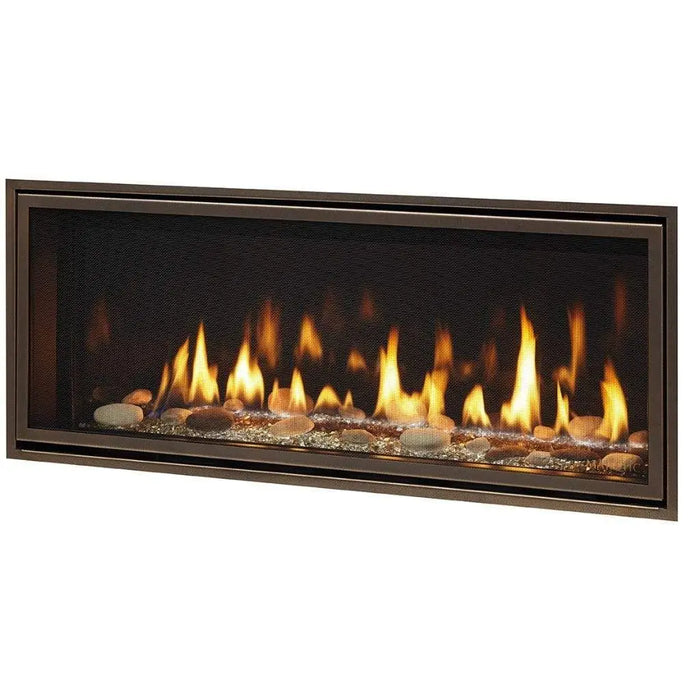

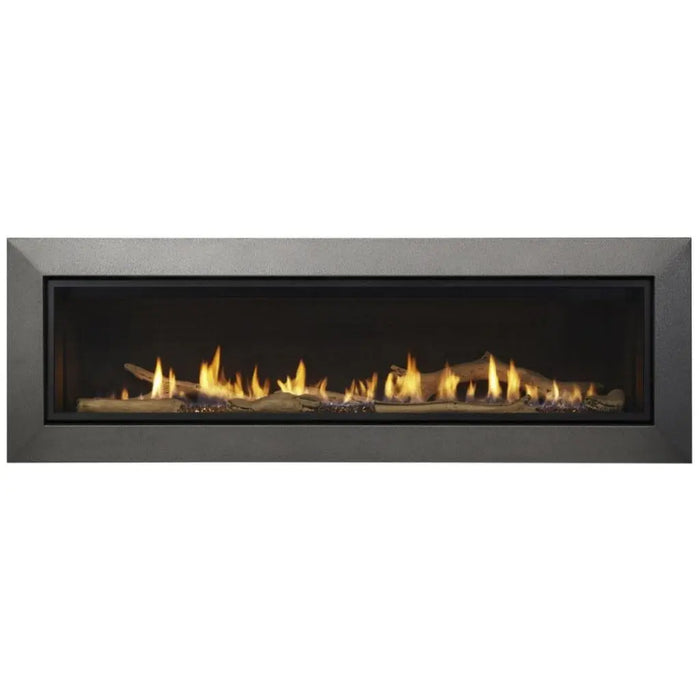

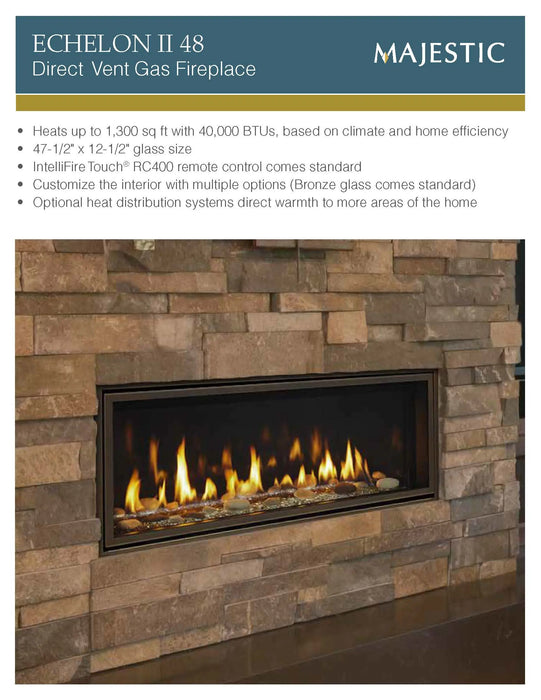

Majestic Echelon II 48" Linear Direct Vent Natural Gas Fireplace

The exclusive Majestic Echelon II 48" Linear Direct Vent Natural Gas Fireplace creates a place to relax and enjoy life. Active flames and interior options give this contemporary fireplace a unique look. Get lost in its fire and the brilliance of glass illuminated by lights. Come home to the single-sided or see-through Echelon II series gas fireplace, and enjoy the entertainment and romance you deserve.

What's Included

  • Fireplace unit
  • IntelliFire Touch ignition system
  • Clear LED dimmable lights
  • RC400 remote control
  • Battery backup
  • Ceramic glass
  • Standard with bronze glass media

Not Included

  • Front (Required to Complete)

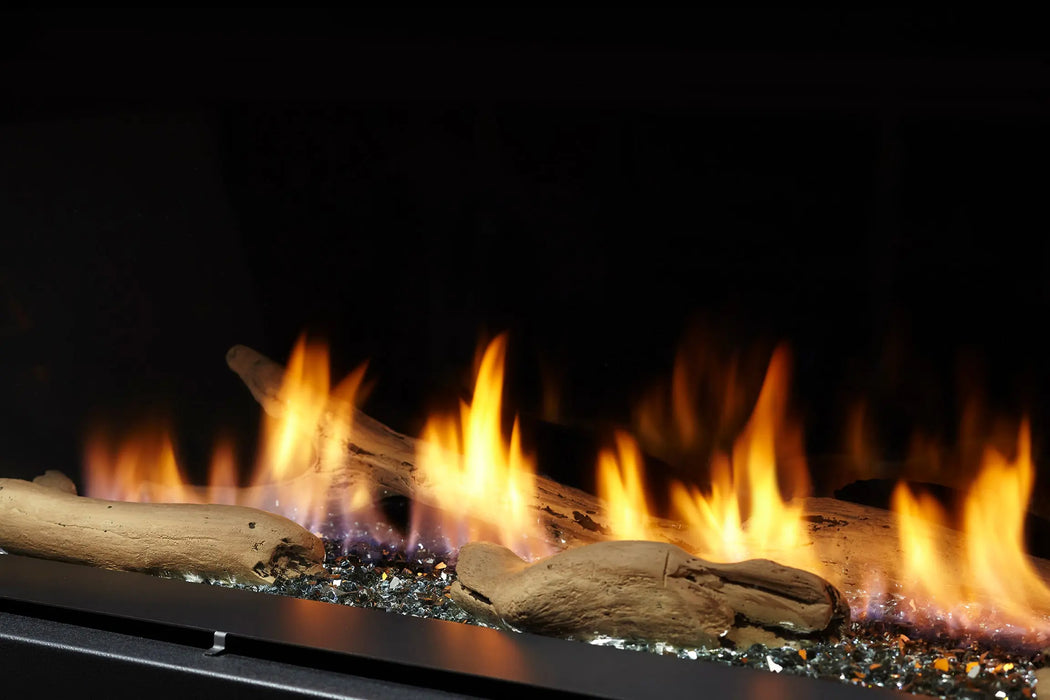

  • Driftwood Log Set
  • Liner Kit
  • LP Conversion Kit
  • Heat Management
  • If changing media, follow the required number below:
    • Crushed Glass: 12 lbs. of glass

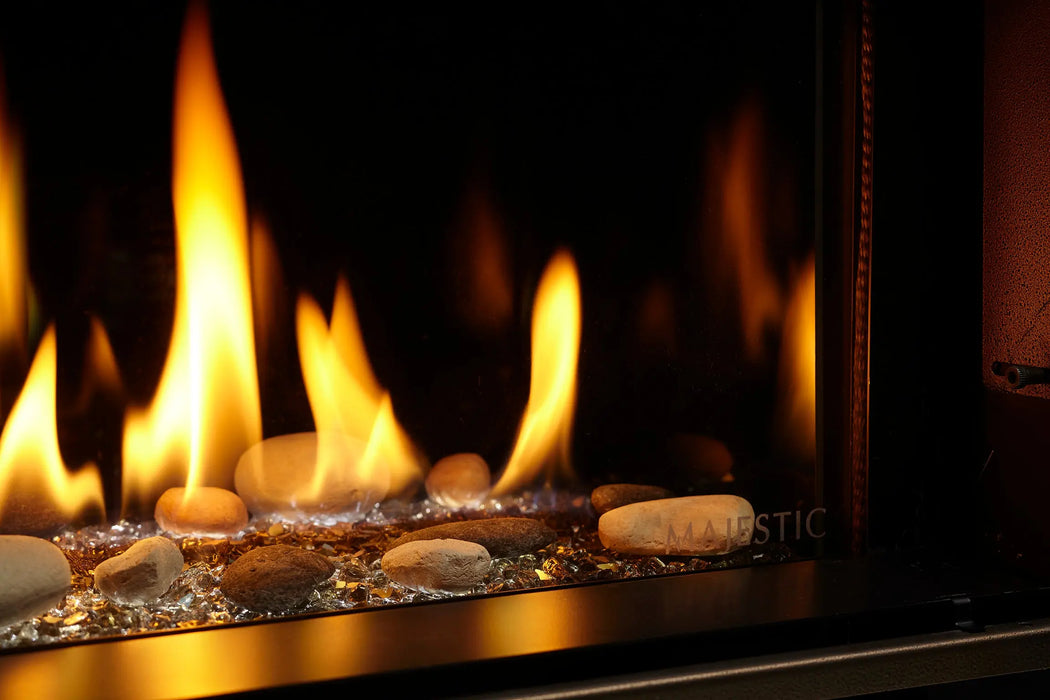

    • Natural stones: 3 bags of stone
    • Log set & stones: 1 bag of stone

Features

  • Direct Vent Technology - Removes any fumes or combustion exhaust efficiently and effectively from your home.
  • IntelliFire Touch® - Offers you a touchscreen remote control or wireless wall switch to fit your life.
  • Battery backup - Ensures you always have a reliable source of warmth even with a winter power outage.
  • LED Ember Bed Glow - Adds brilliant LED sparkle to your hearth for an ambiant glow with or without a fire burning.

Venting Notes

  • Requires 8" DVP pipe. Must have 18" minimum vertical before attaching a 90-degree elbow to the unit. See venting section of manual.
  • Approved for use with PVLP-SLP, PVI-SLP-B, and PVV-SLP with PV-IPI-CK kit and power vent wire harness (order separately). When Power Vent is installed, lights can only be operated on high. See venting section of manual.

Specifications

Model Echelon II 48 Rev C Gas Fireplace - DV
Fuel Type
Natural Gas
Liquid Propane by conversion
Viewing Area 47-1/2" x 12-1/2"
BTU/hr Input
21,000 - 40,000 (NG)
20,000 - 34,000 (LP)
Heating Capacity
Up to 1,300 sq.ft.
Unit Width
58"
Unit Height
41-3/4"
Unit Depth
17-1/8"
Framing Height 42"
Framing Depth
18-1/4"
Framing Front Width
60-1/4"
Framing Back Width
60-1/4"

Product & Framing Specifications

Front/Top View

Left/Right Side View

Basic Clearances

Framing Dimensions

Warranty

Majestic warranties illustrate commitment to producing the best and most reliable products available—and allow you to own your hearth appliance with confidence. You can read and download the specifics of the warranties below.
Click to See Warranty Coverage and Limitations


Hearth & Home Technologies LLC (“HHT”) extends the following warranty for HHT gas, wood, pellet and electric hearth appliances (each a “Product” and collectively, the “Product(s)”) and certain component parts set forth in the table below (“Component Part(s)”) that are purchased from a HHT authorized dealer or distributor.


WARRANTY COVERAGE

HHT warrants that the Products and their Component Parts will be free from defects in materials and workmanship for the applicable period of Warranty coverage set forth in the table below (“Warranty Period”). If a Product or Component Parts are found to be defective in materials or workmanship during the applicable Warranty Period, HHT will, at its option, repair the applicable Component Part(s), replace the applicable Component Part(s), or refund the purchase price of the applicable Product(s). The maximum amount recoverable under this Warranty is limited to the purchase price of the Product. This Warranty is transferable from the original purchaser to subsequent owners, but the Warranty Period will not be extended in duration or expanded in coverage for any such transfer. This Warranty is subject to conditions, exclusions, and limitations as described below.


WARRANTY PERIOD

Warranty coverage begins at the date of installation. In the case of new home constructions, Warranty coverage begins on the date of first occupancy of the dwelling or six months after the sale of the Product(s) by an independent, authorized HHT dealer or distributor, whichever occurs earlier. However, the Warranty coverage shall commence no later than 24 months following the date of Product shipment from HHT, regardless of the installation or occupancy date.

Check Warranty Policy.


WARRANTY CONDITIONS

  • Because HHT cannot control the quality of any Products sold by unauthorized sellers, this Warranty only covers Products that are purchased through an HHT authorized dealer or distributor unless otherwise prohibited by law; a list of HHT authorized dealers is available on the HHT branded websites.
  • This Warranty is only valid while the applicable Product remains at the site of original installation.
  • This Warranty is only valid in the country in which the HHT authorized dealer or distributor that sold the applicable Product is authorized to sell applicable Product.
  • Contact your installing distributor or dealer for Warranty service. If the installing dealer or distributor is unable to provide necessary parts, contact the nearest HHT authorized dealer or supplier. Additional service fees may apply if you are seeking Warranty service from a dealer other than the dealer from whom you originally purchased the applicable Product.
  • No HHT consumer should bear cost of warranty service or costs incurred while servicing warranty claims (i.e., travel, gas, or mileage) when the service is performed within the terms of this Warranty. Check with your dealer or distributor in advance for any costs to you when arranging a warranty call. Travel and shipping charges for parts are not covered by this Warranty.

Documents & Files


Majestic Echelon II 48" Linear Direct Vent Natural Gas Fireplace
