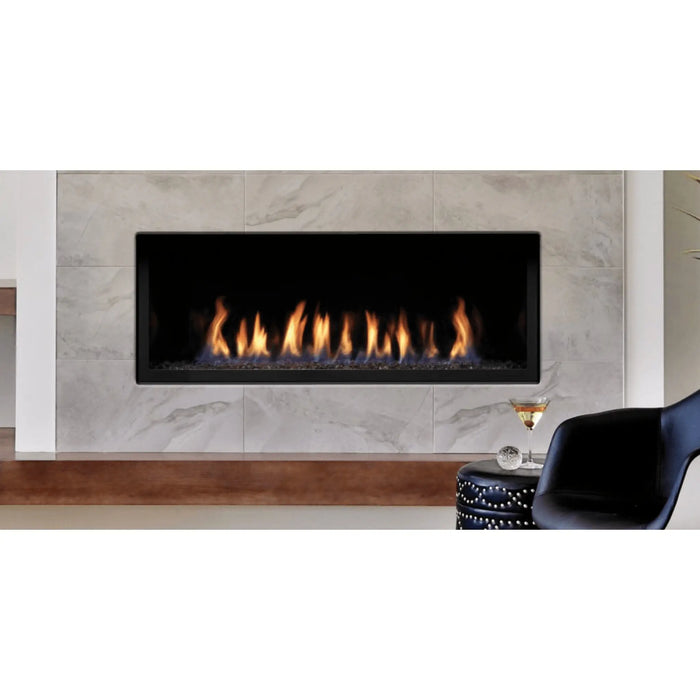

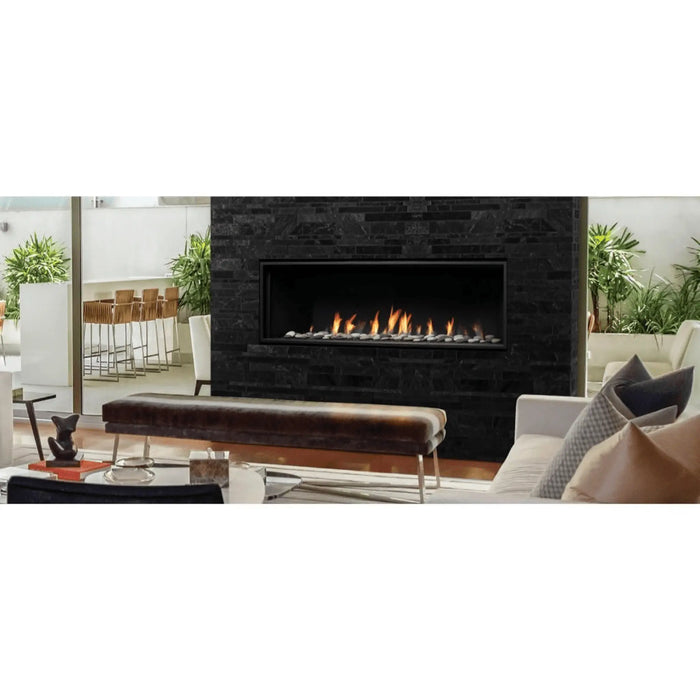

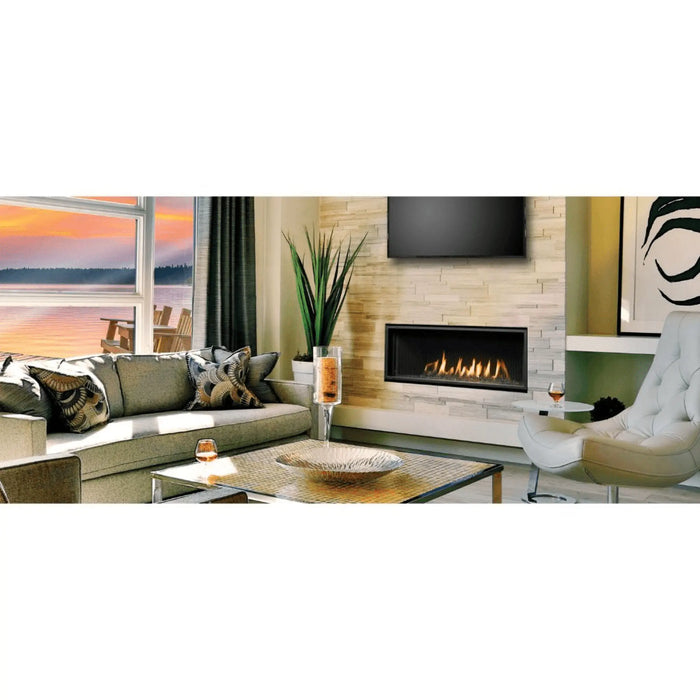

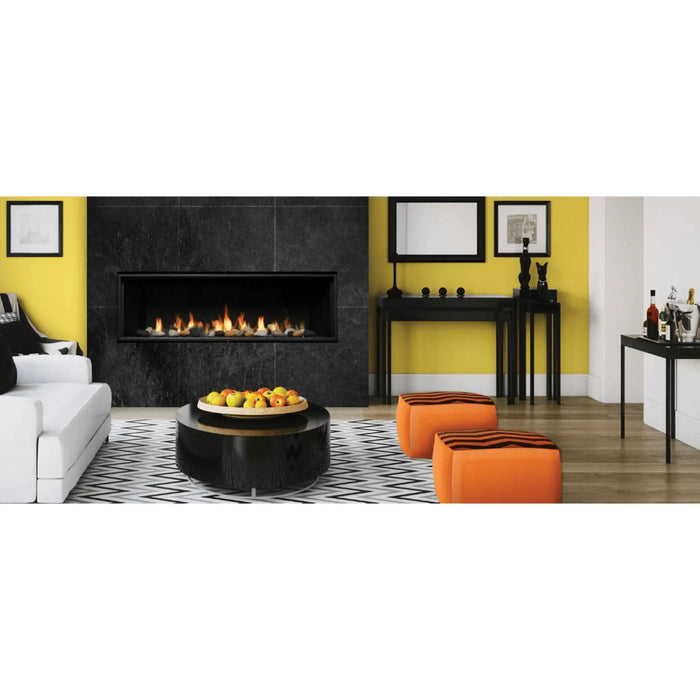

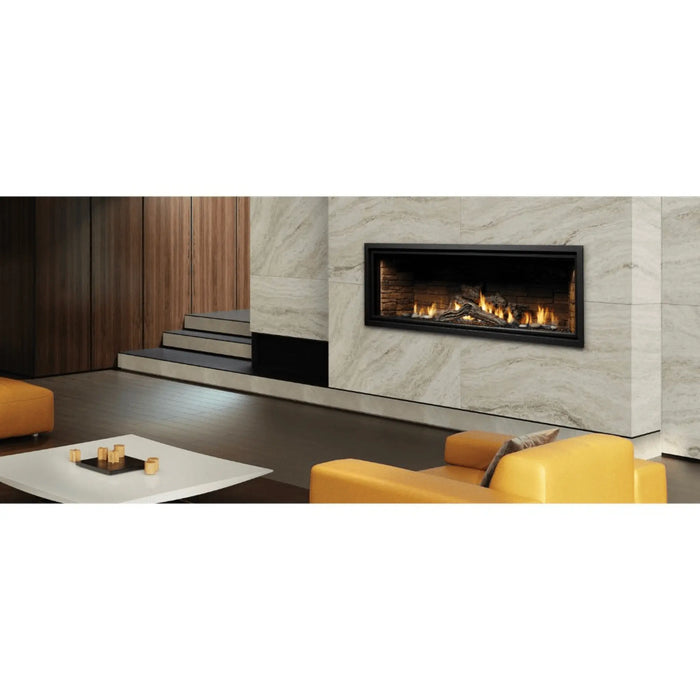

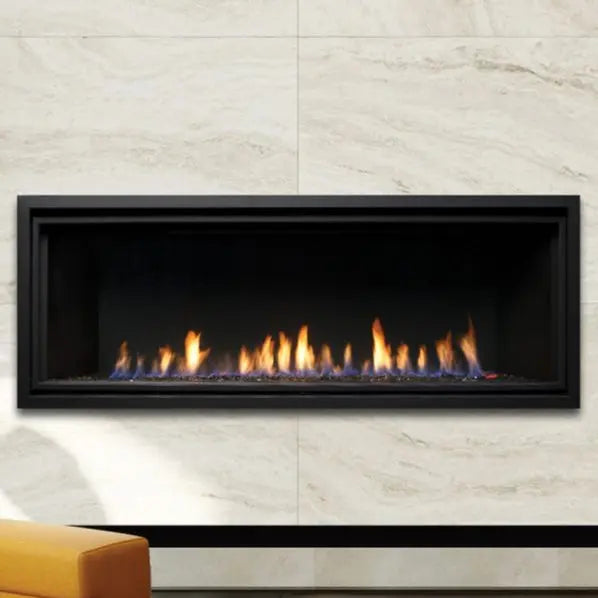

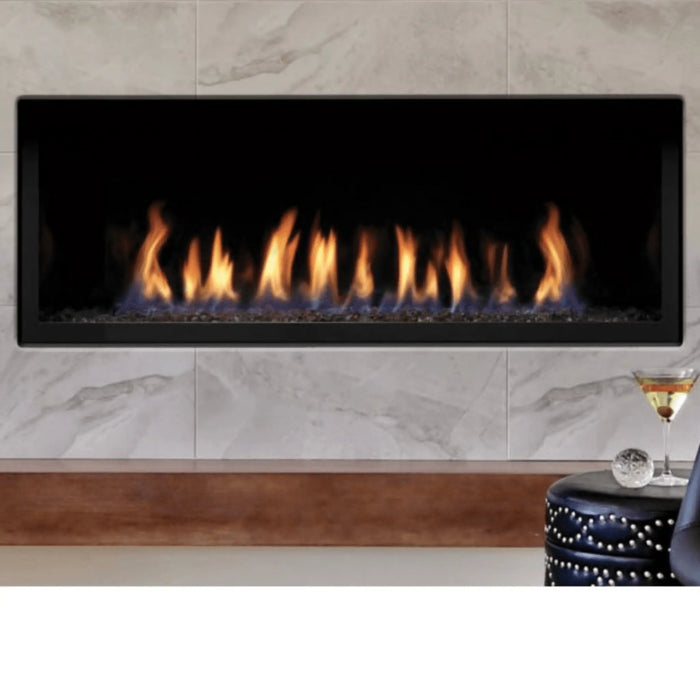

Kingsman 47" ZCVRB47 Zero Clearance Direct Vent Linear Gas Fireplace

SKU ZCVRB47N
Original price $4,340.40 - Original price $4,719.60
Original price
$4,340.40
$4,340.40 - $4,719.60
Current price $4,340.40

Free Shipping and No Sales Tax on All Orders

Fuel Type: Natural Gas
Ignition Type: Millivolt
  • FREE SHIPPING : All Over United States

  • NO SALES TAX : All USA Orders/except WI

  • SPEAK TO AN EXPERT : Call 888-486-2909 or email at cs@dreamwoodliving.com

Kingsman 47" ZCVRB47 Zero Clearance Direct Vent Linear Gas Fireplace

Kingsman 47" ZCVRB47 Zero Clearance Direct Vent Linear Gas Fireplace, The ultimate in Zero Clearance Direct Vent Fireplaces for new home construction or renovation, and your best choice for installation anywhere throughout your home. Warm-up your favorite room with the beauty of a Linear Fireplace.

Kingsman ZCVRB47 47-Inch Zero Clearance Linear Direct Vent Gas Fireplace with Fire Glass offers an impressive direct vent gas fireplace option for your home. Featuring heavy-duty steel construction, this classic design offers durability to withstand the test of your time. With its premium burner system, realistic flame pattern, and impressive fire glass, this appliance replicates the design of a traditional wood fireplace while incorporating a contemporary styling also. With its safe and authorized design, this unit is often installed during a bedroom, bed-sitting room, or perhaps during a mobile home.

To meet the needs of your installation, this fireplace is often customized in a variety of ways. additionally, to fuel type, this unit are often purchased with a remote-ready millivolt ignition system or an intermittent pilot ignition (IPI). This fireplace also can be purchased with a porcelain reflective liner to further customize your appliance.

The Kingsman ZCVRB47 gas direct vent fireplace is a clean-lined linear fireplace that will be installed into a chase with vents near the ceiling to reduce mantel and tv clearances. There are many items included with this unit that will have you prepared to enjoy your fires fast. With up to 24,000 BTU, there'll be no issues getting the temperature that you simply decide and be able to control with one of the optional remotes.

STANDARD FEATURES

  • Color: Black
  • Size: 47 Inches
  • Tempered glass
  • Safety screen barrier
  • Attractive linear style
  • Fuel Type: Natural Gas / Liquid Propane
  • Includes decorative bronze glass
  • Product Dimensions: 46 5/8" W x 38 5/8" H x 17 3/4" D
  • Mobile home, bedroom and bed sitting room approved

*Venting Requirements: This unit requires a venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.

INCLUDES

  • Safety screen barrier
  • bronze glass media
  • linear burner
  • SIT Valve with Hi/Lo Adjustment

PRODUCT SPECIFICATION

Model ZCVRB47N/NE
ZCVRB47LP/LPE
Fuel Natural Propane
Flue Top
Top
Gas Control Millivolt / IPI Millivolt / IPI
Input Max. 24,500 BTU
24,500 BTU
Input Min. 16,500 BTU
20,500 BTU
FE (p.4.1-02)% 55.62% / 57.31%
55.01% / 57.10%
Flue Sizes
4/7"
4/7"
Glass Size
40 5/8” W x 13 7/8” H
40 5/8” W x 13 7/8” H
Glass Type Tempered Tempered
Size (WxHxD)
46 5/8" W x 38 5/8" H x 17 3/4" D
46 5/8" W x 38 5/8" H x 17 3/4" D
Viewing Area
38 5/8" W x 11 7/8" H
38 5/8" W x 11 7/8" H
Venting 4/7" Flex or 4 x 6 5/8" Hard Pipe
4/7" Flex or 4 x 6 5/8" Hard Pipe
Electronic Ignition
NO / YES NO / YES
Certification Heater
Heater
Bedroom Approved
Yes
Yes

DIMENSIONS

OPTIONS & ACCESSORIES

Click to see Conversion Kit


Conversion Kit

Conversion Kit to Propane Millivolt (46ZRB-CKLP)

  • For Millivolt Units only
  • Natural gas to propane
  • Complete with conversion instructions
  • For use with ZCVRB47 Direct Vent Zero Clearance Gas Fireplace
  • Includes all necessary gas valve and pilot assembly conversion components

Conversion Kit to Natural Gas Millivolt (46ZRB-CKNG)

  • For Millivolt Units only
  • Propane to natural gas
  • Complete with conversion instructions
  • For use with ZCVRB47 Direct Vent Zero Clearance Gas Fireplace
  • Includes all necessary gas valve and pilot assembly conversion components

Conversion Kit to Propane IPI (46ZRB-CKLPI)

  • For IPI Units only
  • Natural gas to propane
  • Complete with conversion instructions
  • For use with ZCVRB47 Direct Vent Zero Clearance Gas Fireplace
  • Includes all necessary gas valve and pilot assembly conversion components

Conversion Kit to Natural Gas IPI (46ZRB-CKNGI)

  • For IPI Units only
  • Propane to natural gas
  • Complete with conversion instructions
  • For use with ZCVRB47 Direct Vent Zero Clearance Gas Fireplace
  • Includes all necessary gas valve and pilot assembly conversion components
Click to see Enclosure Grill


Enclosure Grill

Enclosure Ventilation Grill Side (VL60EGS)

  • Set of two grills
  • Product Dimensions: 15 1/4" W x 6 5/8" H
  • 6 5/8" x 15 1/4" required opening each
  • Must be within 3/4" of sealed enclosure top
  • For use with ZCVRB47, ZCVRB60 fireplaces

Enclosure Ventilation Grill Front (V46EG)

  • Finish: Unfinished
  • Type: Grill for Enclosure
  • Ventilation up to 105 Sq./Inches
  • Measures 46 3/4" wide by 2 5/8" high
  • Allows heat to be reclaimed into the room
  • Designed to ventilate the enclosure for the ZCVRB47 series fireplaces
Click to see Surrounds Trim Kit


Surrounds Trim Kit

Black Surround Trim Kit (ZCVRB47S1BL)

  • Color: Black
  • 1 1/2" thick
  • Surround trim kit
  • Optional accessory
  • Covers 44 5/8" W x 17 3/4" H
  • Black finish
  • Designed for use with ZCVRB47 fireplaces

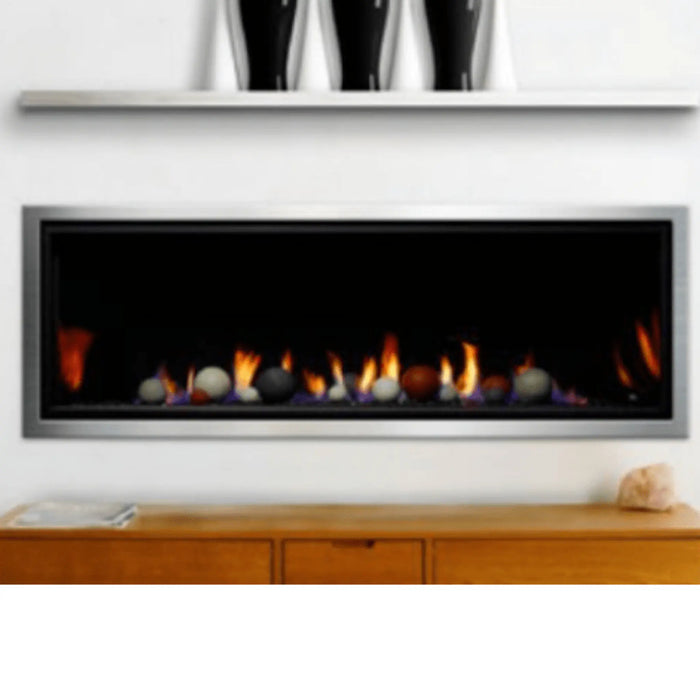

Stainless Steel Surround Trim Kit (ZCVRB47S1SS)

  • Color: Stainless Steel
  • 1 1/2" thick
  • Surround trim kit
  • Optional accessory
  • Covers 44 5/8" W x 17 3/4" H
  • Stainless steel finish
  • Designed for use with ZCVRB47 fireplaces
Click to see Liner Kit


Liner Kit

3 Piece Porcelain Reflective Panel Liner (ZCVRB47PL)

  • Color: Reflective Black
  • Amplifies the flame presentation via reflective qualities
  • Durable porcelain coated steel finish
  • Installation hardware included
  • Sleek modern appearance compliments fire glass installations
  • Designed specifically for ZCVRB47 series fireplaces
Click to see Assorted Cannonball


Assorted Cannonball

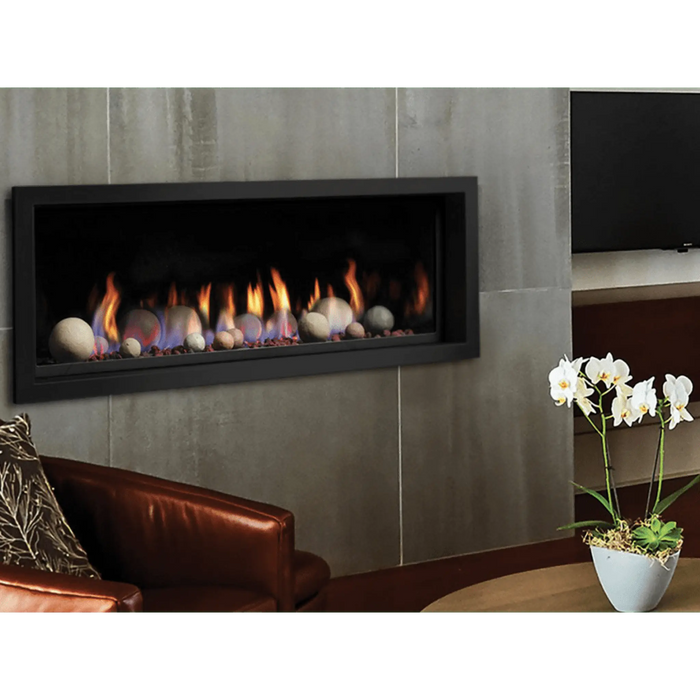

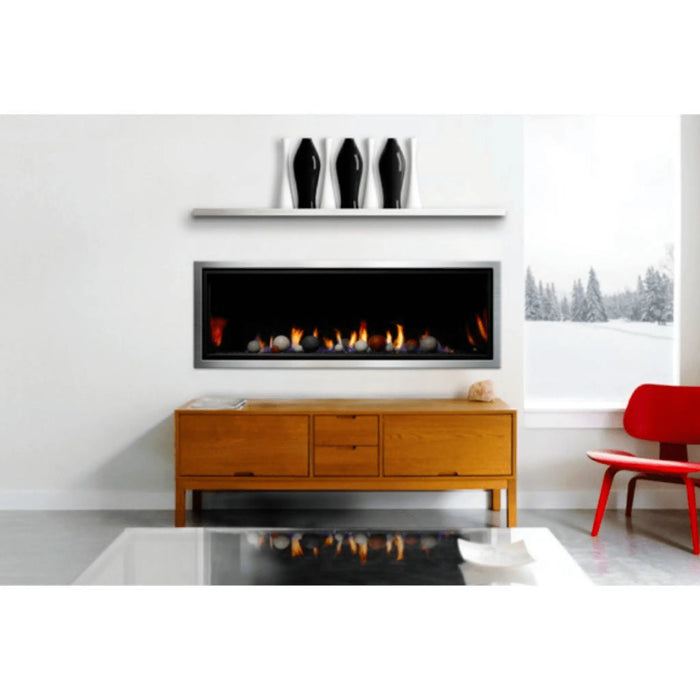

Assorted Cannonball (RBCB1)

  • Color: Various Colors
  • Unique design alternative to glass media
  • Design for Kingsman fireplaces and stoves
  • Can be used with glass media accents
Click to see Fan Kit


Fan Kit

Speed Temperature Sensing Fan Kit (Z46FK)

  • Squirrel cage blower design for quiet and powerful operation
  • Thermal switch for automatic on/off operation
  • Variable speed control with built in all off setting
  • Designed to fit Kingsman fireplaces
Click to see Accent Lighting


Universal Light Kit - Two Lamps for Glass Trays (ULK2)

  • Dual halogen lamps accent glass media installations
  • Works with Kingsman fireplaces
  • Backlight affect adds a unique touch to glass equipped fireplaces
  • Can be used to illuminate the fireplace when not in use
Click to see Tile Lip Kit


Tile Lip Kit

Tile Lip Kit (V47PTLK)

  • Three pieces
  • Optional accessory
  • Includes 11 screws
  • 1 bottom piece, 2 side
  • For use with ZCVRB47 Series fireplaces
Click to see Thermostat


Thermostat



Wall Mount Thermostat- For Millivolt Units (Z2MT)

  • Simple on/off millivolt thermostat design
  • Easy to use digital control
  • Allows convenient operation of gas appliances
  • Simple to wire to existing millivolt systems

Programmable Digital Wall Mount Thermostat- For Millivolt Units (Z80PT)

  • Schedule programmable for desired operation
  • Works with Kingsman millivolt appliances
  • Easy to read digital LCD display
Click to see Remote Control

Remote Control

On/Off Remote Control for Millivolt/IPI Units (GFRC)

  • Simple on/off operation for millivolt appliances
  • Allows for the operation of the appliance without manual control
  • Included receiver easily mounts within the appliance chassis
  • Reliable RF transmitter operation

Thermostat Remote Control Millivolt/IPI Units (GTRC, EGTRC)

  • On/off operation with modulating thermostat control
  • Allows for the operation of the appliance without manual control
  • Included receiver easily mounts within the appliance chassis
  • Reliable RF transmitter operation

Thermostat On/Off modulating for Natural Gas/Propane Millivolt/IPI Units
(GTMRCN, GTMRCP, EGTMRCN, EGTMRCP)

  • On/off operation with modulating thermostat control
  • Allows for the operation of the appliance without manual control
  • Included receiver easily mounts within the appliance chassis
  • Reliable RF transmitter operation
  • Includes high/low modulating motor for natural gas and propane gas fireplaces

Thermostat On/Off modulating and fan control for Natural Gas/Propane Millivolt/IPI Units (GTFRCN, GTFRCP, EGTFRCN, EGTFRCP)

  • On/off operation with modulating thermostat control
  • Allows for the operation of the appliance without manual control
  • Included receiver easily mounts within the appliance chassis
  • Reliable RF transmitter operation
  • Includes high/low modulating motor for natural and propane gas fireplaces
  • Allows for control of optional fan operation
Click to see venting products


venting products

DuraVent Sloped Flue Stove Pipe Adapter - ZDVDFA
The Dura-vent fireplace adapter is just the thing you would like to keep the fireplace residue from infiltrating your house. With this vent, fresher air is produced throughout the house.
45-Degree DirectVent Pro Elbow - 46DVA-E45, 46DVA-E45B
Use to offset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 45°. Finish: Galvanized & Black.
90-Degree DirectVent Pro Elbow - 46DVA-E90B, 46DVA-E90
Use to offset obstructions as needed. Fully unitized, twist-lock construction. Elbows swivel, allowing the lock to remain fully engaged while aligning to the desired direction. The angle will remain fixed at 90°. Finish: Galvanized & Black.
4"x6.625" DirectVent Pro Pipe Length

Features a fully unitized twist-lock construction in both 4” x 6 5⁄8” and 5” x 8” vent sizes. Use of sealant is optional unless specified by the appliance manufacturer. Finish: Galvanized & Black.
4"x6.625" DirectVent Pro Pipe Extension

Use to add length to a straight length of DirectVent Pro. 8 ½” pipe adds 3”- 7” of length, 16” pipe adds 3”- 14 ½” of length when used with rigid sections of pipe. Direct vent lengths feature a fully unitized, twist-lock construction. Available in black or galvalume exterior.

4"x6.625" DirectVent Pro Adjustable Pipe

Use of sealant is optional unless specified by the appliance manufacturer. Available in black or galvalume exterior.
DirectVent Pro Wall Strap - 46DVA-WS
Use to support vent pipe. Provides 1” clearance. Recommend installing Wall Straps at 4-foot intervals on vertical runs.
DirectVent Pro Ceiling Firestop - 46DVA-FS
Required for multi-story vertical installations on the second floor and any subsequent floors.
DirectVent Pro Vinyl Sliding Standoff - 46DVA-VSS
Use as a heat shield on structures with vinyl siding, or other temperature-sensitive materials, to help prevent warping and or melting of the material.
DirectVent Pro Attic Insulation Shield - 46DVA-IS
Required for installations that pass through an attic to prevent insulation and debris from accumulating near the vent. Provides 1” clearance to combustibles.
Horizontal Chimney Vent Termination Starter Kit

Round and Square Horizontal Chimney Vent Termination Starter Kit will provide you with the secure and efficient ventilation you need to stay your fireplace functioning well. This vent termination starter kit is 36/60 inches long, and it comes with a wall thimble, all the screws, and a mill pac.
Flex Chimney Vent Kit - 4" Inner Diameter
Flex ventilation material adapts to tight spaces and corners and allows you more freedom with the placement of your stove. 5 / 8 / 20 Foot Length. Spring, Screws, Mill Pac Included. Primarily used as an extension for venting systems.
DirectVent Pro Adjustable Roof Flashing - 46DVA-F6
Use to weatherproof the penetration of vent pipe through the roof. Select roof flashing based on pitch of the roof. For pitches of 0/12 - 6/12. Storm Collar required. Made of galvalume.
DirectVent Pro Steep Roof Flashing - 46DVA-F12
Use to weatherproof the penetration of vent pipe through the roof. Storm Collar required. Made of galvalume.
DirectVent Pro Dead Soft Aluminum Flashings - 46DVA-F6DS
Available in sizes 4”x 6 5⁄8” and 5”x 8”, in 0/12-6/12 (shown) and 7/12-12/12 styles. Made of malleable dead soft aluminum. Use with metal or tile roofs.
DirectVent Pro Storm Collar - 46DVA-SC
Use to maintain a weather tight resistant seal between the pipe and the flashing.
DirectVent Pro High-Wind Termination Cap - 46DVA-VCH
Available in aluminum. Use for vertical terminations only. For vertical terminations only. Provides improved performance in high wind conditions.
DirectVent Pro Low-Profile Termination Cap - 46DVA-VC
Available in aluminum and stainless steel (S). Use for vertical terminations only. Check the appliance manufacturer’s instructions to determine which caps are approved for use with their appliance.
DirectVent Pro Wall Thimble - 46DVA-WT
Use with Square Horizontal Cap only. Provides a complete wall-pass-through and firestop. Refer to the appliance manufacturer’s installation instructions for requirements.
DirectVent Pro Square Horizontal Termination Cap - 46DVA-HC
Use for standard and high-wind through-the-wall termination. Check installation instructions for restrictions on horizontal cap terminations. Available in aluminum, stainless steel (S), and copper (C).
DirectVent Pro Round Horizontal Termination Cap - 46DVA-HRCS
Use for through-the-wall termination. Check installation instructions for restrictions on horizontal cap terminations. Finish: aluminum.
4/7 Horizontal Vent Termination - FDVHT, FDVHSQ

Round/Square Vent Horizontal Termination for 4x7-Inch Venting provides a premium installation component for use with your fireplace.
Universal Safety Cage for Horizontal Termination - FDVHSCU
Universal Safety Cage. Designed for Horizontal Termination. Use with Horizontal Vent Starter Kit.
Horizontal Stucco Shield - FDVHSS
It's designed to protect the stucco siding from heat. Its product adding a direct vent stove to your home, consider the protection necessary for using it safely.
Chimney Vent Snorkel Termination - Z47ST24, Z47ST36
Chimney Vent Snorkel Termination for 4x7-Inch Venting provides a premium installation component to be used with your fireplace. With a variety of styles and high-quality materials. If a vertical rise is necessary on the exterior side of the building.
Convertible Between 15' & 40' Vertical Vent Termination - FDVVT40
It's convertible between 15' and 40' vertical. The convertible function allows for better flexibility and use. Must watch out to follow the proper steps and double-check that the proper parts and accessories are being used.
Vertical Chimney Vent Termination - Z47VT
Direction: Vertical
Type: Vent Termination
Fireplace type: Zero Clearance direct vent gas
Attic Insulation Shield - ZDVAIS
This shield will protect your attic and roof from the heat that escapes through the chimney. The shield offers 12" and 24" of insulation designed to surround your chimney.
Vertical Chimney Vent Offset Support - ZDVVOS
It'll support your chimney through inclement weather, including heavy rain, snow accumulation, and wind, also as natural wear from gravity over time. The support has been tested for durability and function.
Vertical Chimney Vent Firestop Spacer - ZDVFS
Chimney Vent Firestop Spacer is created out of rugged metal that will not deteriorate within the short term, and it'll make sure that your chimney vent is held at a correct length from any flammable surface nearby, such as the wall.
Chimney Vent Roof Support - ZDVRS
Chimney Vent Roof Support will help your chimney function well through various circumstances: heavy wind, storms with heavy rain, hail, and snow accumulation just to call some.
Wall Thimble for Horizontal Venting - ZDVWT
Horizontal Chimney Vent Wall Thimble for 4x7-Inch Venting provides a premium installation component to be used with your fireplace. This Vent Wall Thimble is durably constructed and tested rigorously to protect your wall and inner material from the hot surface of the ventilation piping.
Heat Deflector Siding Shield - ZDVSS
Siding Heat-Shield for Horizontal Round Chimney Termination will protect your siding from the chance of combustion to the heat. Protect combustible siding from combustion and charring. Made with careful metallic composition for heat tolerance.
Large Return Siding Shield - ZDVSSLR
Siding Heat-Shield for Horizontal Round/Square Chimney Termination will protect your siding from the chance of combustion to the heat.
Roof Flashing with Storm Collar - ZDVAAF, ZDVAF2, ZDVAF3

This storm collar measures 7" in inner diameter. This product has the capability of sealing the vent lengths that protrude from a sloped roof. And also, vertical installations are needed with this product and can be purchased separately.
7" Storm Collar - ZDV7SC
7-Inch Vertical Venting Storm Collar for 4x7-Inch Vertical Venting provides a premium installation component to be used together with your fireplace. This storm collar measures 7 inches in diameter.
3-Feet Insulation Sleeve for Low Enclosures - MDV38IS
If you have a multi-sided direct vent fireplace, you'll need an MDV38IS Insulation Sleeve. This insulation sleeve measures 3 feet and is for low enclosures.
Flex Connector - 4" & 7" Diameter - ZDV4FC, ZDV7FC
The chimney vent is just the thing to stay your belongings free of dirt. This chimney vent is provided with a flex connector that measures 4 or 7 inches in diameter.
Flex Clamp - 4" & 7" Diameter - ZDV4FCL, ZDV7FCL
Flex Clamp provides a premium installation component to be used with your fireplace. This clamp is 4 or 7 inches in diameter.
4" Standoff Spring Spacer - ZDV4SS
Spring standoff spacer is simply the part needed for your chimney vent. This spring spacer measures 4 inches in diameter and has the potential of withstanding years of use. This spacer also will keep its polishing color.
Galvanized Chimney Vent Pipe for Vertical Installations - Z47GP36
This particular model is used for vertical installations. The galvanization of this model makes it not only easy to keep clean, but also sturdy enough to withstand years of use.

DOWNLOADS

Kingsman 47" ZCVRB47 Zero Clearance Direct Vent Linear Gas Fireplace
