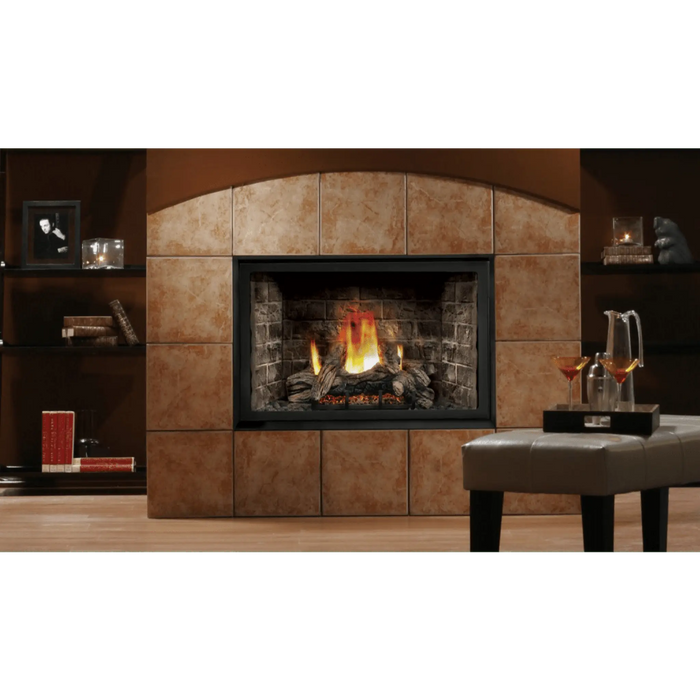

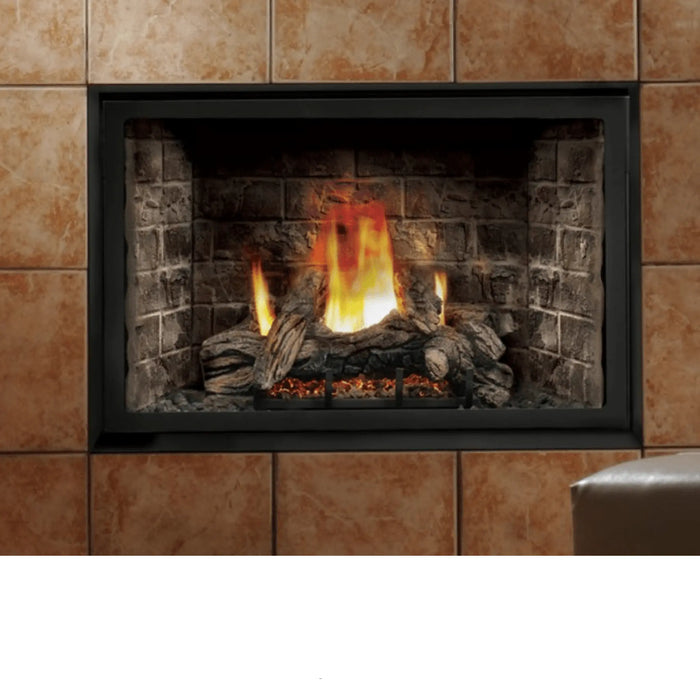

Kingsman 42" HBZDV4228 Zero Clearance Direct Vent Gas Fireplace
The ultimate Kingsman 42" HBZDV4228 Zero Clearance Direct Vent Gas Fireplace for new home construction or renovation, and your best choice for installation anywhere throughout your home.
Kingsman fireplaces are among the safest and best designed on the market. This 42-inch gas-burning fireplace is made from top-of-the-line materials and comes complete with a dual burner, wall switch, 4/7" sloped top flute, tempered glass and louvered framing. It also comes standard with a completely sealed combustion unit and painted stove with the very best quality silicone paint.
Available in natural gas and liquid propane, Kingsman quality fireplaces let you enjoy the wonder of glowing embers and dancing flames and up to 85% maximum efficiency. Create an elegant and warm focal point in your home. Kingsman fireplaces have fully sealed combustion chambers with no pollution spillage to depreciate the indoor air quality of your home.
STANDARD FEATURES
Size: 42 inches
Vent type: direct vent
Safety Screen Barrier
Gas Inlet Size 3/8"(SIT)
Fully sealed combustion chamber
Efficiency Rating: 57.7% NG / 58.6% LP
Includes removable safety barrier screen
Dual burner with Realistic Flame Pattern
Tempered glass front radiates heat to the room
Viewing Area Dimensions: 33 3/8" Wide, 20 3/8" High
Able to be configured as a clean face or louvered model
SIT brand gas control valve with manual high/low controls
Reliable standing pilot valve system ensures ready operation during power outages
Millivolt or IPI valve system allows operation during a power failure with Hi/low heat and flame adjustment
A flame sensor that constantly monitors the pilot flame and provides 100% gas shut off if pilot is not sensed
PRODUCT SPECIFICATIONS
Model
HBZDV4228N/NE
HBZDV4228LP/LPE
Fuel
Natural
Propane
Flue
Top
Top
Gas Control
Millivolt / IPI
Millivolt / IPI
Input Max.
28,000 BTU
26,000 BTU
Input Min.
20,000 BTU
19,000 BTU
FE (p.4.1-02)%
68.04% / 70.16%
65.29% / 67.66%
Flue Sizes
4/7"
4/7"
Glass Type
Ceramic
Ceramic
Viewing Area
33 3/8" W x 20 3/8" H
33 3/8" W x 20 3/8" H
Venting
4/7" Flex or 4/6 5/8" Hard Pipe
4/7" Flex or 4/6 5/8" Hard Pipe
Certification
Heater
Decorative
Actual Width (CVCK)
42 1/16"
42 1/16"
Actual Height (CVCK)
36 13/16"
36 13/16"
Actual Depth (CVCK)
18 15/16"
18 15/16"
Actual Width (Louvers)
41 7/8"
41 7/8"
Actual Height (Louvers)
37"
37"
Actual Depth (Louvers)
16 7/16"
16 7/16"
Bedroom Approved
Yes
Yes
OPTIONAL ACCESSORIES
Designer Clean View Circulating Kit
(No Louvers Required)
Grills
Available in Black
Surrounds Wide (Louvered Units)
Available in Black Coverage • HBZDV3624/28 – 35 1/2” h x 41 1/8” w Coverage • HBZDV4224/28 – 37 5/8” h x 45 1/8” w
Fan Kit
Heat activated with variable speed control
Liners
Traditional Brick, Herringbone Brick or Porcelain Reflective
Thermostat
Wall Mount Millivolt Thermostat or Programmable Thermostat
Remote Control
Thermostat On/Off, Thermostat On/Off modulating, Thermostat On/Off modulating and fan control
Log Set
LOGC44 Burnt Oak Eight Piece Log Set (Required)
Wall Mount Battery Holder (WMBH) :
The battery holder provides power to the IPI system in case of power failures. Locating the battery holder outside of the fireplace (wall mount), provides a convenient and accessible location for battery installation and removal.
