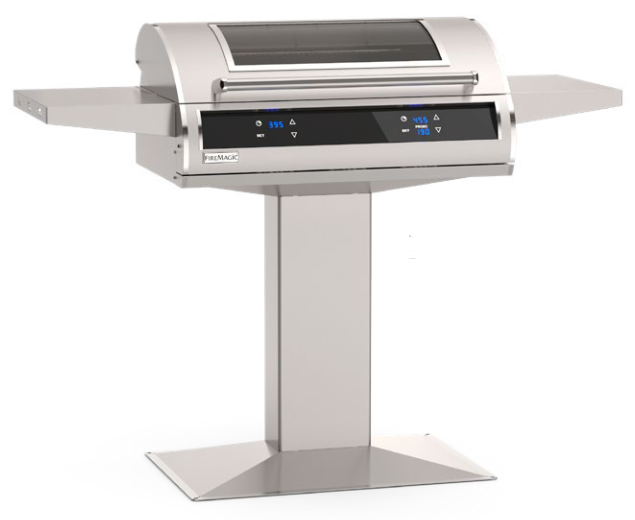

Fire Magic EL500s 30" Patio Post-Mount Electric Grill With Optional Magic View Window
The Fire Magic EL500s patio post-mount electric grill (order numbers EL500s-3Z1E-P6, EL500s-4Z1E-P6, EL500s-4Z1E-W-P6) is a 30" stand-alone electric grill for patios and outdoor spaces with no gas line. It runs on 240 volts and reaches 700°F on 31" x 16" (496 sq. in.) of Diamond Sear cooking grids.
It has a touch screen digital thermostat with timer and Bluetooth; it can be run from a phone through the RHP Connect app, and a meat probe is included. Choose one control, or two independent controls for dual-zone cooking.
Requires a dedicated 30 amp GFCI circuit breaker; have a licensed electrician make the connection.
Key Features
- 31" x 16" (496 sq. in.) of Diamond Sear cooking grids
- Heats up to 700°F
- Touch screen digital thermostat with timer
- Bluetooth, with remote operation through the RHP Connect app
- Meat probe included
- One control or two independent controls (dual zone)
- Warming rack included
- Optional Magic View window in the lid

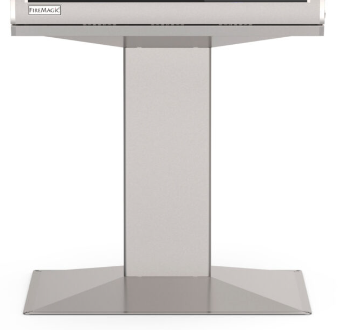

- Patio post with base, standard height (P6/G6)
- 304 stainless steel construction
- Outdoor use only
What to Order With It
Fits:
- Patio, deck or concrete pad (base anchors with the included lag shields and screws)
Optional:
- Black Vinyl Cover (3665F)
Specifications
- Order numbers: EL500s-3Z1E-P6, EL500s-4Z1E-P6, EL500s-4Z1E-W-P6
- Controls: Touch screen digital, one or two controls
- Cooking area: 31" x 16" (496 sq. in.) of Diamond Sear cooking grids, plus a warming rack
- Maximum temperature: 700°F
- Preheat: At least 15 minutes, or until the desired cooking temperature is reached
- Mount: Patio Post-Mount, standard height (P6/G6)
- Height with lid open: 57.8"
- Electrical: 230/240VAC, single phase, 50/60 Hz, 6,000 watts (25 amp draw) on a dedicated 30 amp minimum GFCI circuit breaker; 10 AWG or larger wire rated for at least 105°C (221°F)
- Clearance to combustible construction: 8" rear, 24" sides; 5 ft minimum to overhead combustible construction
- Use: Outdoor use only
- Shipping weight: 245 lbs
- Cartons: Ships in 2 cartons: 48" L x 30" W x 26" H (grill), 48" L x 32" W x 40" H (post)
Choose your version: One Control: EL500s-3Z1E-P6; Two Controls: EL500s-4Z1E-P6; Two Controls, Magic View window: EL500s-4Z1E-W-P6.
Documents & Downloads
Warranty
- Ten (10) years: electric grill stainless steel cooking grids and housing
- Five (5) years: heating elements
- Two (2) years: under-glass touch screen electronic controls
- One (1) year: other electronic components (including lights, digital thermometers and thermostats) and accessories
- Fire Magic pays a warranty labor allowance for the first two years
Warranty applies to the original purchaser with proof of purchase, for single family residential use.
*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
