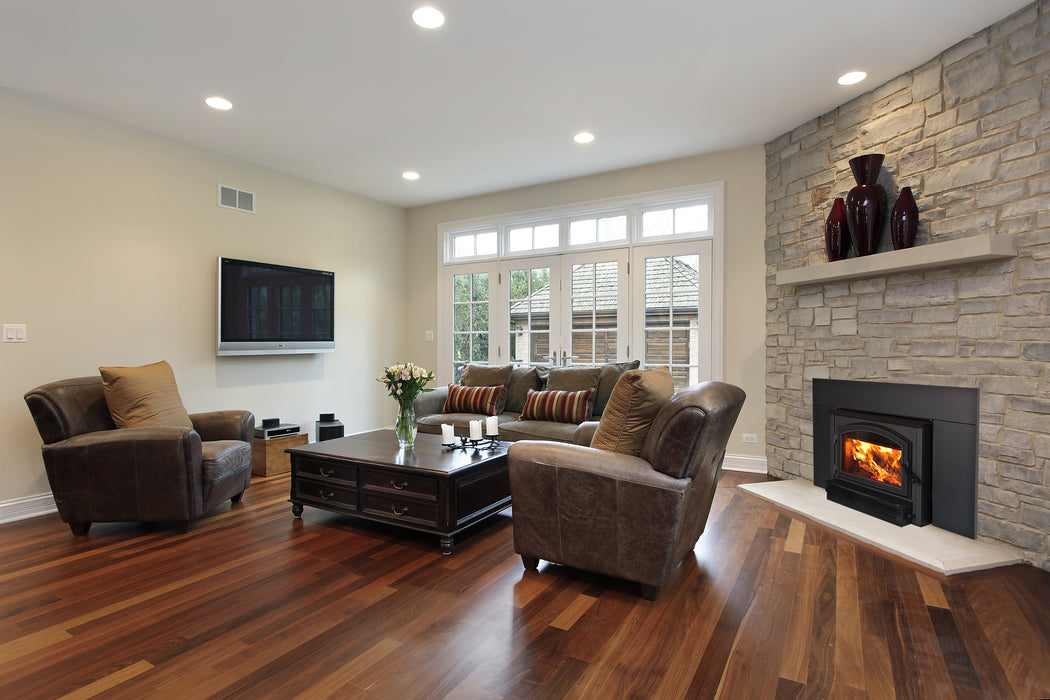

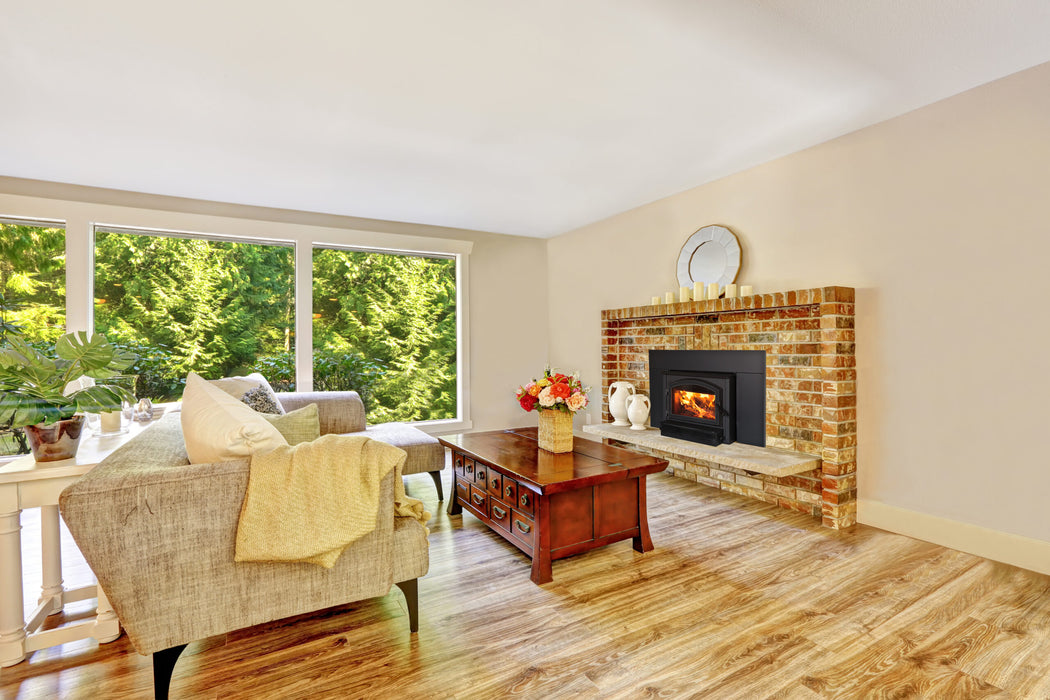

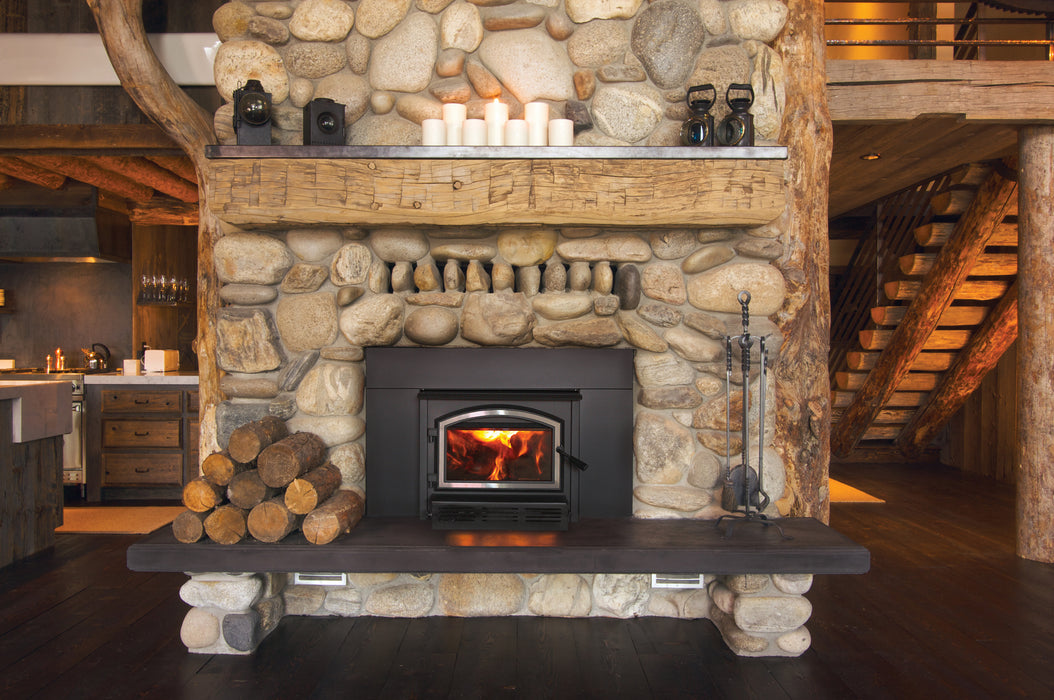

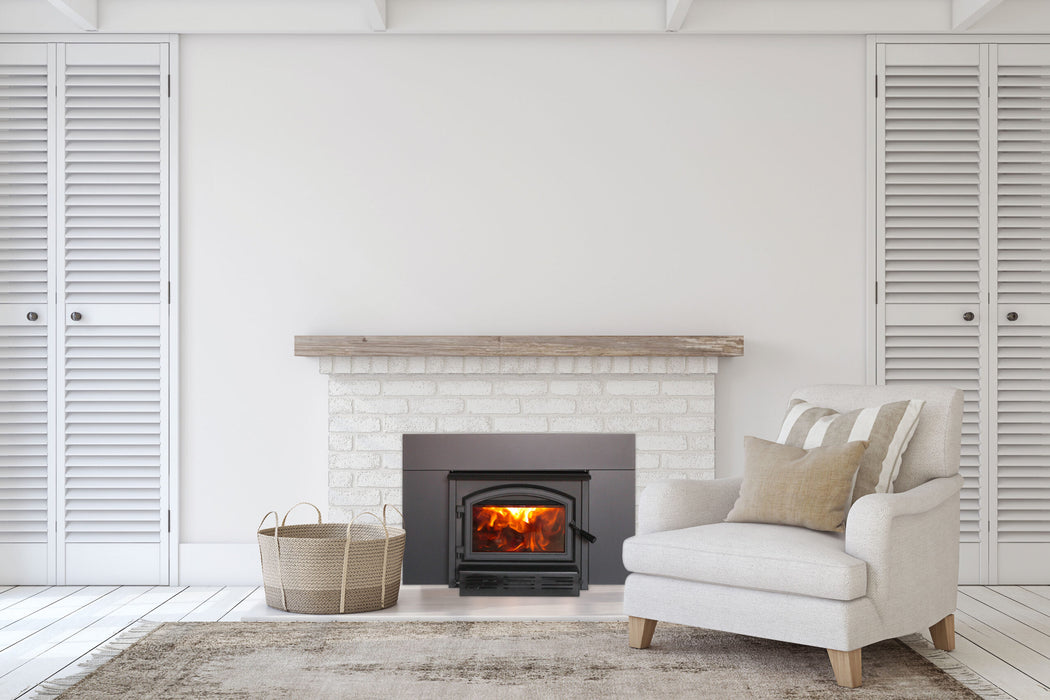

Empire Stove 29" Archway 2300 Wood Burning Insert with Blower
The Empire Stove Archway 2300 (model number WB23IN) is an EPA-certified, non-catalytic wood burning insert for an existing masonry fireplace, rated by Empire for 500 to 2,100 sq ft. A blower is included, and one lever sets the burn rate.
Order one door overlay and one surround to complete the insert. It vents through a continuous 6" stainless steel liner to the top of the chimney, ordered separately.
Key Features
- EPA certified; 2.3 g/h average particulate emissions
- Up to 75,000 Btu/h maximum heat output (dry cordwood)
- Heats 500 to 2,100 sq ft (Empire recommendation)
- Takes logs up to 20" long, loaded east-west
- Blower included, up to 144 CFM, with thermodisc
- One-lever air control and air wash glass
- Three surrounds: 29" x 44", 32" x 50" or 32" x 50" cuttable
What to Order With It
Door overlay for the Archway 2300 (one required):
Surround for the Archway 2300 (one required):
Optional – Fresh air:
Specifications
| Model numbers |
WB23IN |
| Type |
Wood burning fireplace insert, non-catalytic, dry cordwood |
| Recommended heating area |
500 to 2,100 sq ft |
| Firebox volume |
2.4 cu ft overall; 1.95 cu ft EPA loading volume |
| Maximum burn time |
8 hours |
| Maximum heat output |
75,000 Btu/h (dry cordwood) |
| Heat output range |
14,200 to 44,500 Btu/h |
| Average efficiency |
72% (HHV), dry cordwood |
| Particulate emissions |
2.3 g/h average (EPA / CSA B415.1-10) |
| Log length |
20" maximum, east-west; 16" recommended |
| Flue outlet |
6" |
| Chimney |
Continuous 6" stainless steel liner listed to UL 1777 |
| Blower |
Included (up to 144 CFM), variable speed with thermodisc |
| Door |
Single door, ceramic glass, cast iron frame |
| Minimum masonry opening |
24" high x 29 1/2" wide x 19" deep |
| Mobile home |
Not approved |
| Safety listing |
UL 1482, UL 737 |
Installation Requirements
-
Where it can go: only in a code-compliant masonry fireplace with a lined masonry chimney built for solid fuel. Do not remove bricks or mortar from the fireplace. Not approved for mobile homes, and the manual says it is not intended for a bedroom.
-
Masonry opening: at least 24" high, 29 1/2" wide and 19" deep (add about 4" of width if a fresh air kit is used).
-
Chimney liner: a continuous 6" stainless steel liner listed for solid fuel (UL 1777, Class 3) from the insert to the top of the chimney. The chimney must rise at least 3 ft above the roof where it passes through and 2 ft above anything within 10 ft. Do not connect to a flue serving another appliance.
-
Floor protection: non-combustible floor protection at least 16" in front of the door opening and 8" to the sides (US) when the hearth is at least 5" above the combustible floor; with a lower hearth it needs an R-value of at least 1.00 and must extend 23" in front. The depth of the existing hearth counts toward it.
-
Clearances: side walls, combustible surround, mantel and mantel shelf clearances are in the masonry opening and clearances table of the installation manual.
-
Fire screen: Empire states that in the United States, and anywhere a particulate emission limit is enforced, this EPA-certified appliance may not be operated with the door open and a fire screen in place. Burn with the door closed.
-
Installation: must be installed by a qualified installer per the installation manual and local codes; check with your local building official for permits and inspection.
Options & Accessories
Downloads
Warranty
Empire limited lifetime warranty, from the warranty table in the installation manual (parts / labor):
- Combustion chamber (welds only) and cast iron door frame: lifetime / 5 years
- Ceramic glass, plating (manufacturing defect) and convector air-mate: lifetime parts
- Surrounds, heat shields, ash drawer, steel legs, pedestal, trims, C-Cast baffle, secondary air tubes, removable stainless steel combustion chamber, deflectors and supports: 7 years parts
- Handle assembly, glass retainers and air control mechanism: 5 years / 3 years
- Removable carbon steel combustion chamber components: 5 years parts
- Standard and optional blower, heat sensors, switches, rheostat, wiring and electronics: 2 years / 1 year
- Paint (peeling), gaskets, insulation, ceramic fiber blankets, firebricks and other options: 1 year parts
- Parts replaced under the warranty: 90 days
The warranty is for the original retail purchaser and covers normal residential use. Proof of purchase, the model name and the serial number are needed for a claim. Full terms, including what is not covered, are in the warranty section of the installation manual.
