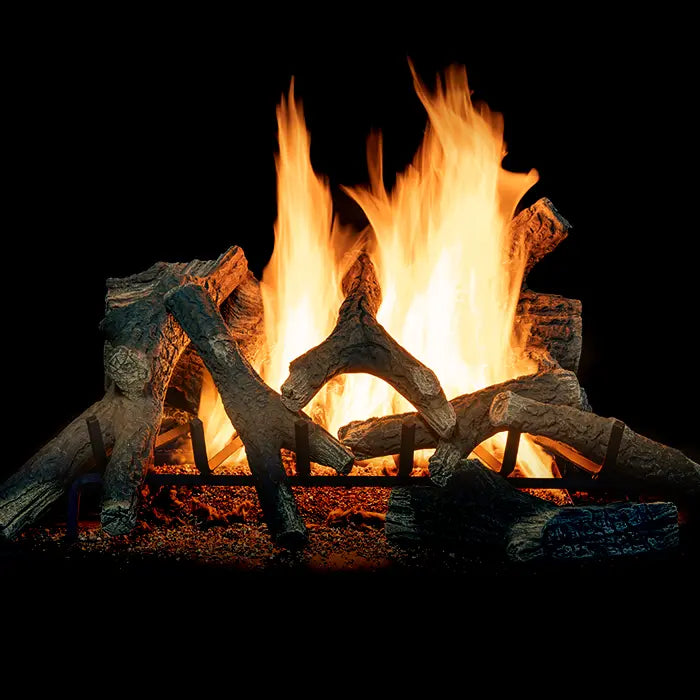

Empire 24"/30"/36" Oak Tinder Vented Gas Log Set
The Empire Oak Tinder log set (model numbers LOT24, LOT30 and LOT36) is a fiber vented gas log set with ember chunks, made for Empire's 24", 30" and 36" vented sand pan burners (VSP single, VDP double or OVDP stainless double) in a wood-burning fireplace. The burner is ordered separately.
The base logs pin into set positions; after that you can arrange the remaining logs to suit your taste. Rock wool from the burner can be added for a glowing ember effect.
Key Features
- 24", 30" and 36" sizes
- Fiber logs with ember chunks
- For Empire VSP, VDP and OVDP sand pan burners of the same size
- The only Empire log set listed for the 36" sand pan burners
- Logs only; burner ordered separately
What to Order With It
Choose the log set size that matches the burner. The sand pan burners come with the vermiculite, rockwool embers and lava rock.
Required – Burner for the 24" set (choose one, ordered separately):
Required – Burner for the 30" set (choose one, ordered separately):
Required – Burner for the 36" set (choose one, ordered separately):
Specifications
| Model numbers |
LOT24, LOT30, LOT36 |
| Sizes |
24", 30" and 36" |
| Material |
Fiber logs with ember chunks |
| Burner |
Empire VSP, VDP or OVDP vented sand pan burner of the same size (24", 30" or 36"), ordered separately |
| Minimum fireplace (masonry) |
Set by the burner: 24": 30" front width, 26" rear width, 16" deep, 24" high; 30": 36" front width, 30" rear width, 18" deep, 28" high; 36": 42" front width, 34" rear width, 18" deep, 28" high |
| Type |
Vented decorative gas logs; in Canada, vented installation only |
Installation Requirements
-
Where it can go: only in a solid-fuel-burning fireplace with a working flue built of non-combustible material, on a vented Empire burner. Do not burn wood or other solid fuel in the fireplace once a gas log set is installed.
-
Damper: a damper clamp must hold the chimney damper open so it cannot close while the logs burn (the sand pan burners include one). Massachusetts requires the damper to be welded open or removed.
-
Chimney: have the chimney and firebox cleaned of soot and creosote before installing the logs.
-
Glass doors and screen: keep glass doors open while the fire burns; use the glass door frame opening as the fireplace front width. Keep a fireplace screen in place.
-
First burn: run the burner on high for at least three hours after installation to burn off dust and paint residue; open a window during this break-in.
-
Drafts: keep fans and cold-air returns from blowing into the fireplace, and avoid scented candles while the logs burn; both can cause soot.
-
Installation: must be installed by a qualified installer per the burner and log set manuals and local codes. In Massachusetts the installation must be done by a licensed plumber or gas fitter.
Downloads
Warranty
The log set manual does not list warranty terms. Warranty claims go through the dealer where you bought the set.
