Empire Carol Rose 30" Loft Outdoor Burner, Intermittent Ignition

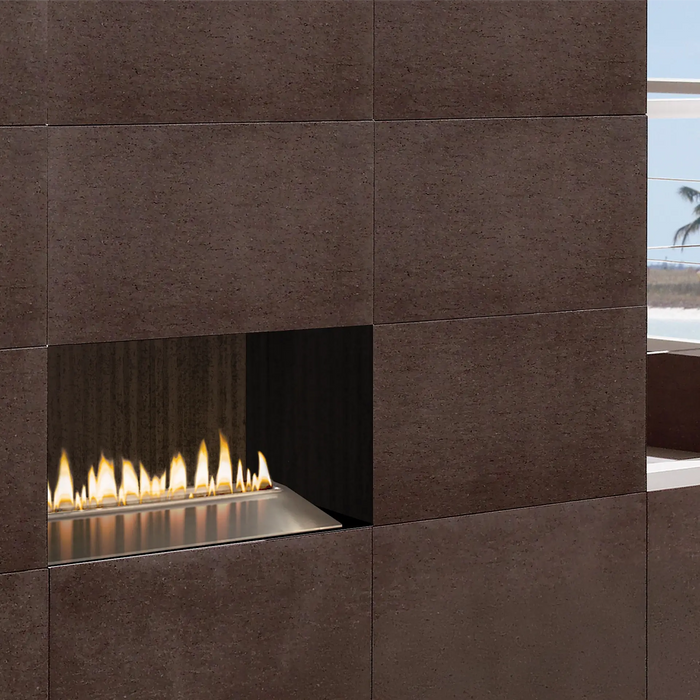

The Empire Carol Rose 30" Loft outdoor burner (model numbers OLI30N for natural gas and OLI30P for propane) is a stainless steel contemporary gas burner with a wide, even linear flame for an outdoor fireplace or firebox. It is for outdoor use only.
Intermittent ignition lights it from the included wireless remote, which turns the flame on and off and sets it high or low. The control runs on batteries, so no house power is needed.
Key Features
- Up to 40,000 Btu/hr (propane; 36,000 on natural gas)
- Stainless steel contemporary burner
- Intermittent ignition with wireless on/off and high/low remote, included
- Battery powered: no 120V connection
- For outdoor fireplaces and fireboxes at least 38 5/16" wide at the front
- Outdoor ventless design
What to Order With It
The burner ships with the battery pack, four AA batteries, the remote with its battery and two concrete anchor screws.
Firebox it fits (optional; any outdoor fireplace or firebox that meets the minimum size works):
Optional – Gas supply timer:
Specifications
| Model numbers |
OLI30N, OLI30P |
| Size |
30" burner |
| Type |
Outdoor ventless decorative gas burner, ANSI Z21.97/CSA 2.41; outdoor use only |
| Input, maximum |
36,000 Btu/hr natural gas; 40,000 Btu/hr propane |
| Input, minimum |
27,000 Btu/hr natural gas; 28,000 Btu/hr propane |
| Control |
Intermittent ignition; wireless remote (on/off and high/low) included; can also run from a wall switch |
| Power |
Battery pack with four AA batteries (included); remote uses a 12V A23 battery (included) |
| Fuel |
Natural gas (N) or propane (P) |
| Minimum firebox |
38 5/16" front width, 32" rear width, 15 9/16" deep, 24 3/16" high |
| Construction |
Stainless steel |
| Style |
Contemporary |
| High altitude |
Above 2,000 ft the input should be reduced 4% per 1,000 ft; see the manual |
Installation Requirements
-
Location: outdoor use only, installed in an outdoor fireplace or firebox. A screened porch is allowed if it has at least 96 sq ft of floor area, a ceiling at least 92" high, at least two screened walls with screens reaching at least 6'6" high on the side walls, and at least 64 sq ft of screen area.
-
Firebox: the fireplace or firebox must be at least 38 5/16" front width, 32" rear width, 15 9/16" deep, 24 3/16" high. If it has glass doors, use the door frame opening as the front width, and keep the doors open whenever the burner runs.
-
Mounting: center the burner so it clears the firebox screen, and anchor it to the firebox floor with the screws provided.
-
Moisture: the burner must sit where water drains off easily. Empire recommends a weather cover or bi-fold glass doors to protect it.
-
Gas line: the burner needs its own manual gas shutoff valve nearby (a T-handle valve in Massachusetts); a flexible connector can be no longer than 3 ft in Massachusetts.
-
Power: none; the ignition runs on its battery pack.
-
Installation: must be installed by a qualified installer per the installation manual and local codes. Empire states that its gas hearth products must be installed and serviced by NFI-certified gas specialists in the U.S. In Massachusetts the installation must be done by a licensed plumber or gas fitter.
Downloads
Warranty
Empire limited parts warranty, from the warranty section of the installation manual:
- All components, except remote controls, thermostats, accessories and replacement parts: 5 years parts
- Remote controls, thermostats, accessories and parts: 1 year parts
The warranty applies to the original purchaser. Full terms, including what is not covered, are in the warranty section of the installation manual.
