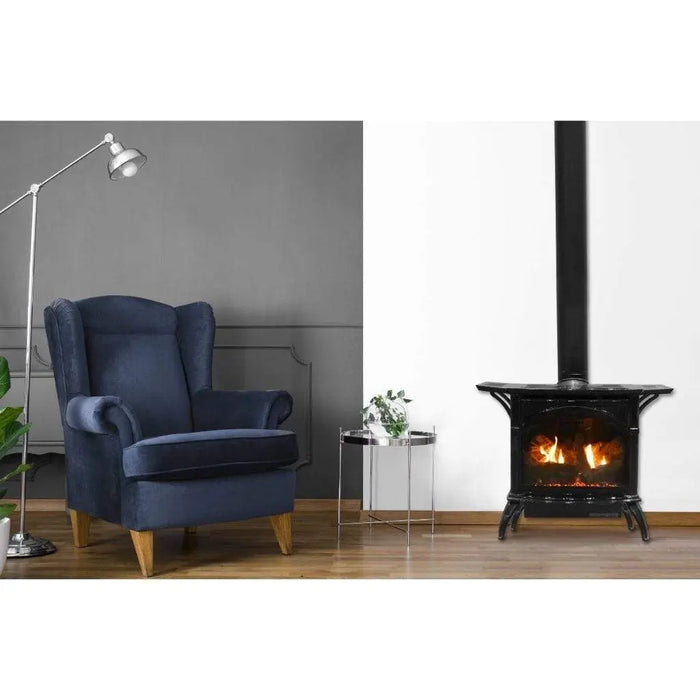

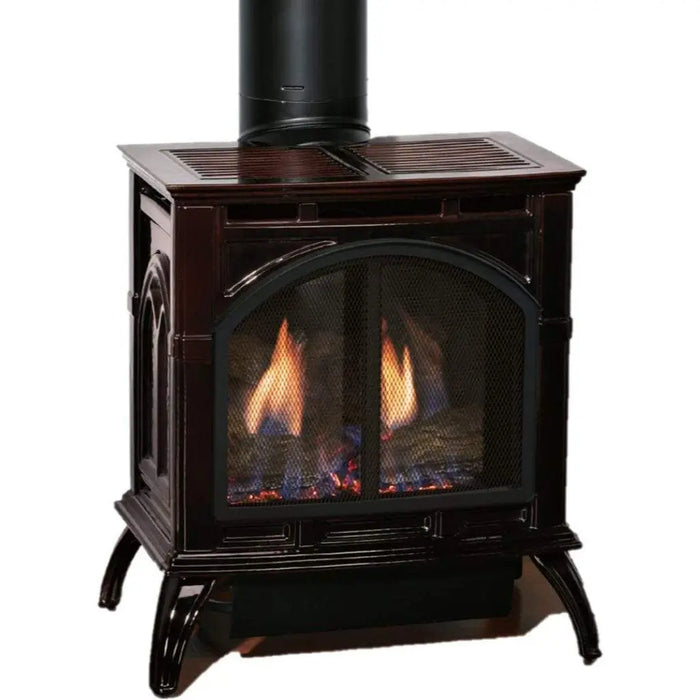

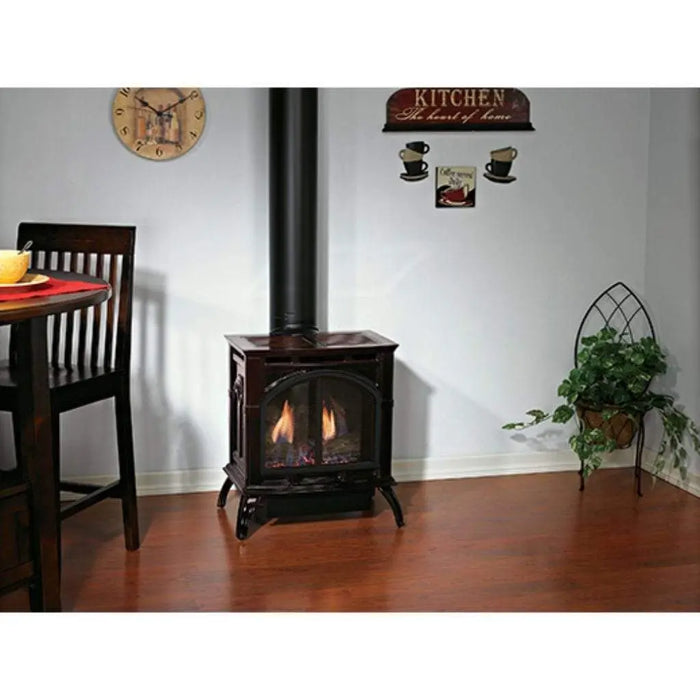

Emipre Spirit Small Cast Iron Direct Vent Gas Stove
- FREE SHIPPING : All Over United States
- NO SALES TAX : All USA Orders/except WI
- SPEAK TO AN EXPERT : Call 888-486-2909 or email at cs@dreamwoodliving.com
Bring timeless charm and reliable warmth to your home with the Emipre Spirit Small Cast Iron Direct Vent Gas Stove. Built from durable cast iron, this direct vent gas stove combines traditional design with modern heating efficiency, making it an ideal addition to any living space.
The direct-vent system uses two vent pipes—one drawing in fresh outdoor air for combustion and the other safely exhausting by-products outside. This sealed combustion chamber, paired with a large glass front, ensures clean operation while allowing you to enjoy the beauty of the flames.

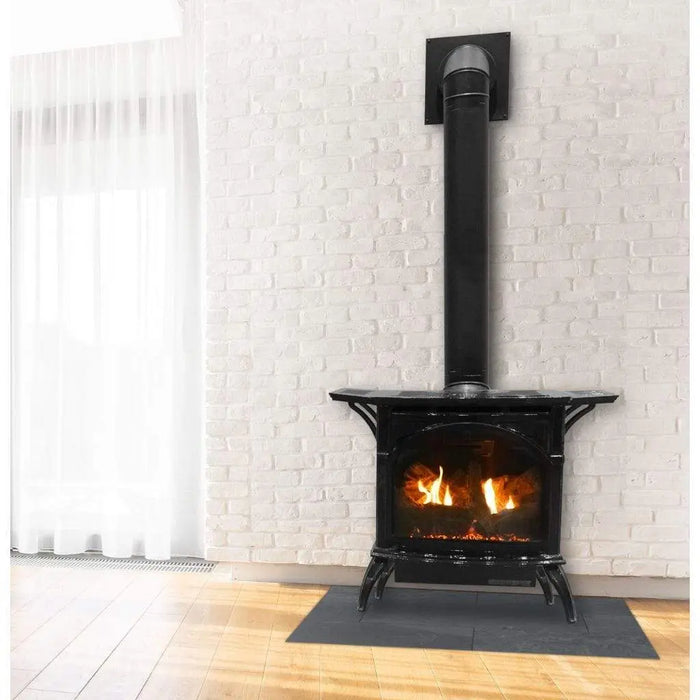

For enhanced comfort, room air circulates around the chamber, and an optional blower helps distribute heat evenly throughout your home. Designed for flexibility, the Spirit Gas Stove can be installed along an exterior wall for a shorter vent run or vented vertically through the roof.
Advantages:
Direct-Vent Spirit Stoves include Empire’s Slope Glaze Burner system with expanded ember bed for extra glow. Ceramic beads within the burner swirl and tumble the gas to create naturally swirling flames that are indistinguishable from a wood fire. Topped off with the hand-painted ceramic fiber log set and glowing embers, the effect is stunningly realistic and guaranteed to keep you and your guests mesmerized for hours.
Choose from two sizes (20,000 or 27,000 Btu) and three colors – porcelain black, porcelain mahogany, and matte black.
Spirit Stoves are available in two types of ignition.
i) Millivolt (MV)
Empire Cast Iron Stoves are available in two types of ignition – Millivolt (MV) and Intermittent Pilot (IP). The Millivolt system lights a standing pilot with a pushbutton piezo ignitor. Once the standing pilot is lit, the MV system operates with an on/off switch concealed on the back of the stove or with one of Empire’s optional remote control systems.
ii) Intermittent Pilot (IP)
IP systems eliminate the standing pilot for even greater energy savings. Pressing the on/off switch ignites the pilot, which then ignites the main burner. IP systems can also operate with an optional remote control system.
Includes AC Power Adaptor (120VAC) with battery backup (switches to battery during power outage)Available Models
Includes
Requires
| Model | DVP20CC |
| Dimensions | 24 1/8" (H) x 21 1/2" (W) x 16 1/2" (D) |
| Dimensions with Shelves | 24 1/8" (H) x 33 3/4" (W) x 16 1/2" (D) |
| Venting | 4x6 5/8" (Use Black where visible) |
| Pallet Quantity | 4 |
| Gas Type | Natural Gas / Propane Gas |
| Input BTU/HR (KW/H) Max (Propane) | 19,500 |
| Input BTU/HR (KW/H) Min (Propane) | 13,500 |
| Input BTU/HR (KW/H) Max (Natural Gas) | 19,500 |
| Input BTU/HR (KW/H) Min (Natural Gas) | 13,500 |

| Top of appliance (ceiling) | 36 inches |
| Rear Wall | 2 inches |
| Side Wall | 6 inches |
| Heater Corners (45° angle) to Wall | 4 inches |
| Floor | 0 inches |



Optional Accessories


*Bottom Covers for 1-piece Metal Surround available in both finishes.

**Requires 1-piece Metal Frame for installation.
