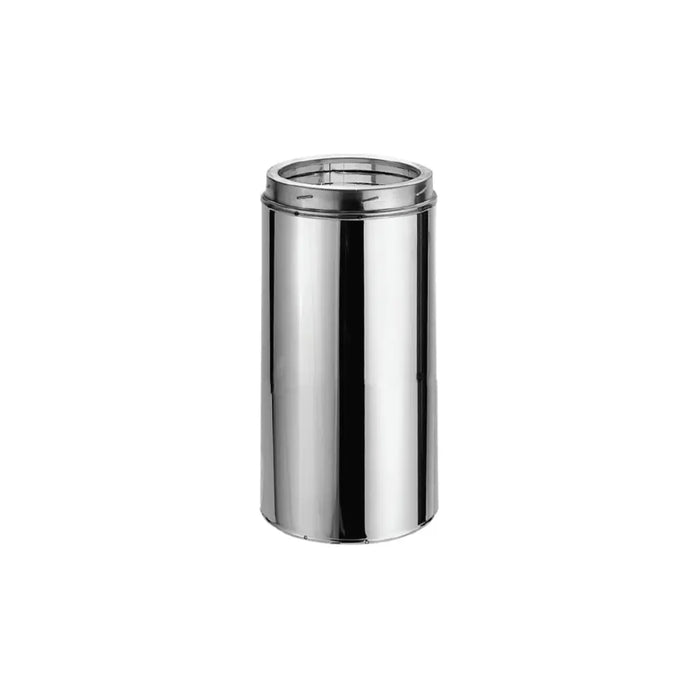

The DuraVent 8DT-12x DuraTech 8-Inch Diameter Chimney Pipe, 12-Inches provides a double-wall, all-fuel chimney pipe that is designed for appliances that are tested and listed for use with a 2,100°F HT chimney system. These include wood stoves, fireplaces, or other appliances fueled by wood, oil, coal, or gas. The chimney pipe features stainless steel inner wall with twist lock connections, creating a light weight design. Choose between a stainless steel or galvalume outer casing to meet the needs of your installation.

To calculate the installed length of 5-8 inch DuraTech Chimney, you must subtract 1.25 inches from each joint overlap of chimney pipe. A minimum of 2-inch clearance to combustibles is required. NOTE: Venting components should be installed by a licensed installer in accordance with local codes and within the manufacturer's specified guidelines as noted in your appliance's installation manual.

Features

• Pipe Class - Class A Chimney Pipe
• High Quality Construction - Made from 430 stainless steel or .021-inch galvanized steel
• Designed For Use With - Wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built
• Clearances - A minimum of 2-Inch clearance to combustibles is required
• Certifications - UL 103 HT and ULC S604 (MH7399) listed

Specification

Downloads

• Typical Chimney Installations
• Product Catalog
• Product Installation Instructions
