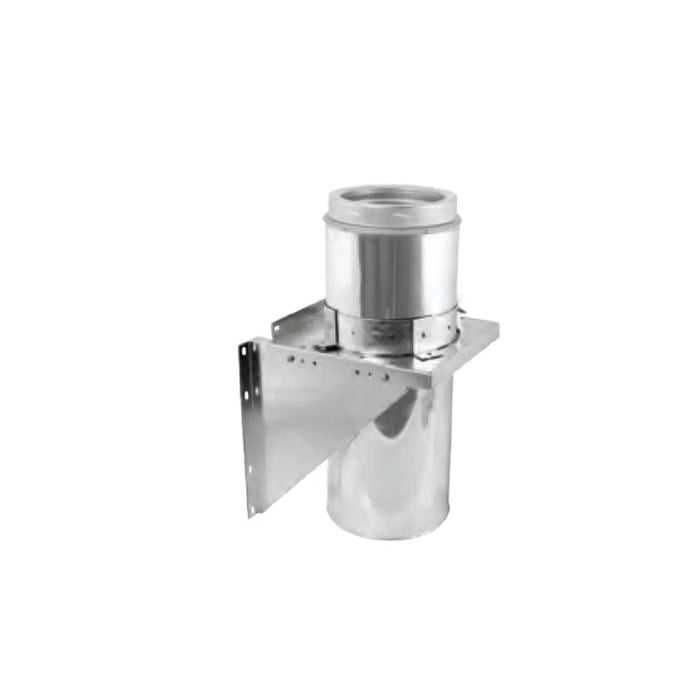

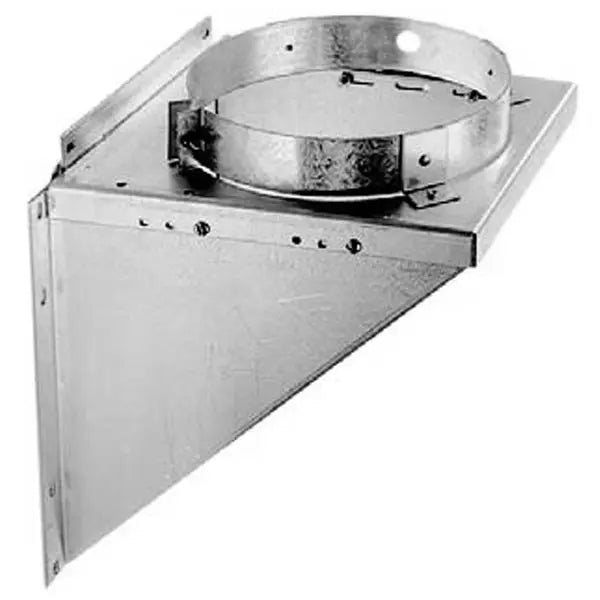

The DuraVent 7DT-TSB DuraTech 7-Inch Diameter Adjustable Tee Support Bracket provides a premium product for use with the DuraTech chimney system. This product has been designed to be used as a wall support for a chimney system and supports up to 50 feet of DuraTech Chimney without straps or 70 feet of chimney with straps. The adjustable tee support bracket attaches to the chimney pipe and can be installed above or below the tee. If this support bracket is installed below the tee, a short section of pipe is required. With its adjustable base, this unit provides between 2 and 6 inches of clearance from a wall. This adjustable support bracket is available with both galvalume or stainless steel options

DuraTech is a double-wall chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood. DuraTech is designed for normal, continuous operation at 1,000 degree flue gas temps. NOTE: Venting components should be installed by a licensed installer in accordance with local codes and within the manufacturer's specified guidelines as noted in your appliance's installation manual.

 Features

• Versatile - Supports 50 feet of chimney without straps or 70 feet of chimney with straps
• Installation - Attaches to chimney pipe above or below the tee; A short section of pipe is required if installed below tee

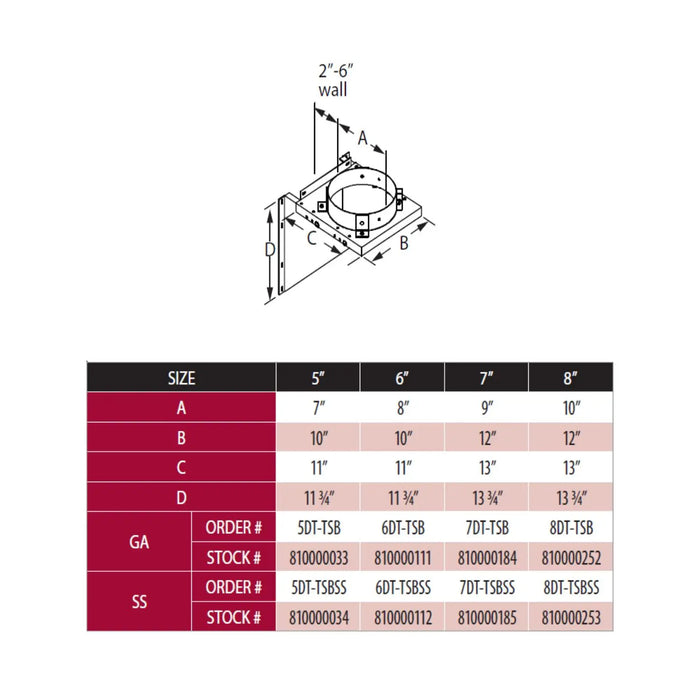

• Adjustable - Adjustable base provides 2 to 6 inches of clearance to wall

Specification

Downloads

• Typical Chimney Installations
• Product Catalog
• Product Installation Instructions
