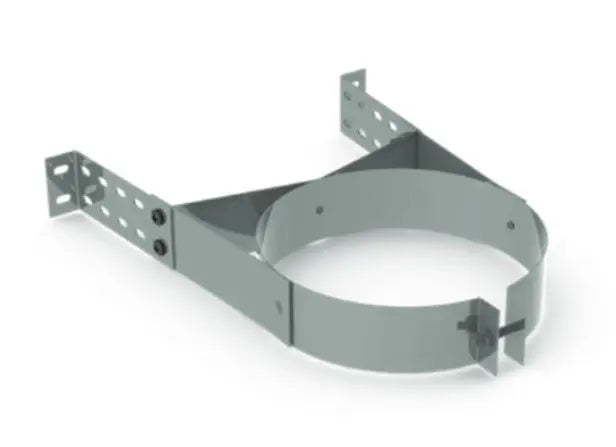

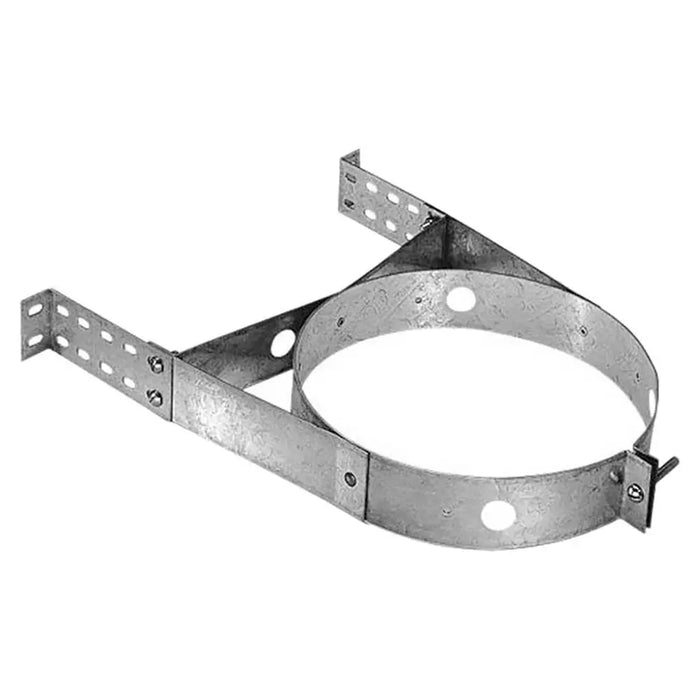

The DuraVent 5DT-WSx DuraTech 5-Inch Diameter Wall Strap provides a premium product for use with the DuraTech chimney system. These wall straps are used in interior and exterior chimney installations to add support for the chimney structure. These units ensure a wall clearance of at least 2 to 6 inches is met and are required for every 8 feet of chimney length. This wall strap is available with both galvalume or stainless steel options.
DuraTech is a double-wall chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood. DuraTech is designed for normal, continuous operation at 1,000 degree flue gas temps. NOTE: Venting components should be installed by a licensed installer in accordance with local codes and within the manufacturer's specified guidelines as noted in your appliance's installation manual.
Features
- For use in interior or exterior installations
- Assures a 2- to 6-inch clearance from combustible walls
- Straps are required for every 8 feet of chimney
Specification
| Specification |
Details |
| Item Number |
5DT-WSSS |
| Series |
Duratech 5" |
| Product Type |
Extended Roof Bracket |
| Inner Diameter |
5" |
| Outer Diameter |
7" |
| Total Width |
10.75" |
Warranty
|
|
Limited Lifetime Warranty
DuraVent, Inc. (“DuraVent”) provides limited lifetime warranty for all of its products with the exception of Ventinox® (lifetime), and PolyPro® (ten years).
|
Click to See Warranty Information
DuraVent, Inc. (“DuraVent”) provides this limited lifetime warranty for all of its products with the exception of Ventinox® (lifetime), and PolyPro® (ten years). Subject to the limitations set forth below, DuraVent warrants that its products will be free from defects in material or manufacturing, if properly installed, maintained and used. DuraVent products are fully warranted if installed only by a professional installer. This Warranty is transferable from the original homeowner to the buyer of the home. This warranty does not cover normal wear and tear, smoke damage or damage caused by chimney fires, acts of God, or any product that was: (1) purchased other than from an authorized DuraVent dealer, retailer or distributor; (2) modified or altered; (3) improperly serviced, inspected or cleaned; or (4) subject to negligence or any use not in accordance with the installation instructions included with the product as determined by DuraVent.
Download DuraVent's Complete Warranty Information
|
