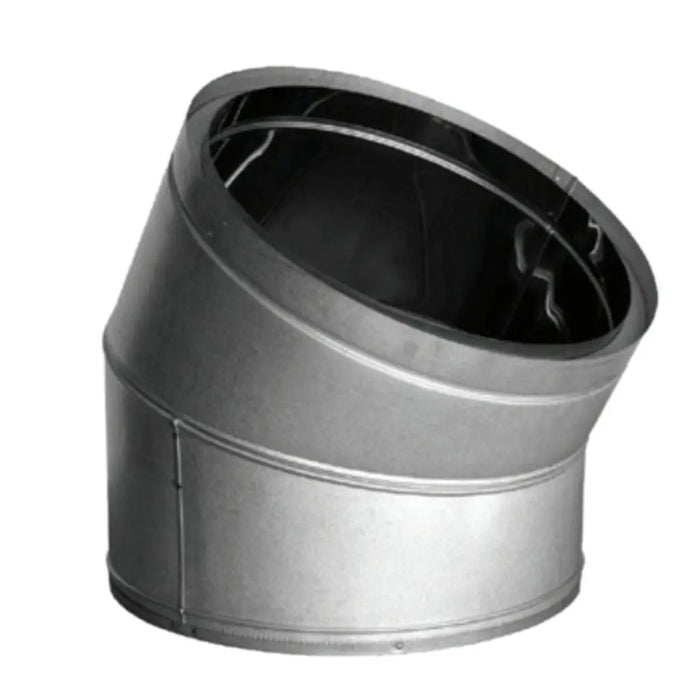

The DuraVent 18DT-E30x DuraTech 30 Degree Elbow, 18-Inch Diameter provides a premium product for use with the DuraTech chimney system. This 30-degree elbow provides an offset for a chimney pipe to allow for routing around obstructions, such as rafters, ridgepoles, or joists. This elbow can be used in conjunction with one additional 30-degree elbow for a greater offset (offsets greater than 30 degrees are not permitted by UL 103 standards). These components are available in galvalume and stainless steel outer walls options with a stainless steel inner wall.

DuraTech is a double-wall chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood. DuraTech is designed for normal, continuous operation at 1,700 degree flue gas temps. NOTE: Venting components should be installed by a licensed installer in accordance with local codes and within the manufacturer's specified guidelines as noted in your appliance's installation manual.

Features

• For Use With - Designed to bypass obstructions such as rafters, ridgepoles, or joists
• Heavy-Duty Design - Available with stainless steel inner wall and stainless steel or galvalume outer wall
• Versatile - Can be combined with additional elbow for greater offset
• Notice - Offsets greater than 30 degrees are not permitted

Specification

Downloads

• Download Product Catalog
• Download Installation Manual
• Download Typical Installation

California PROP 65: This product can expose you to Lead & Chromium, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. See WARNING
