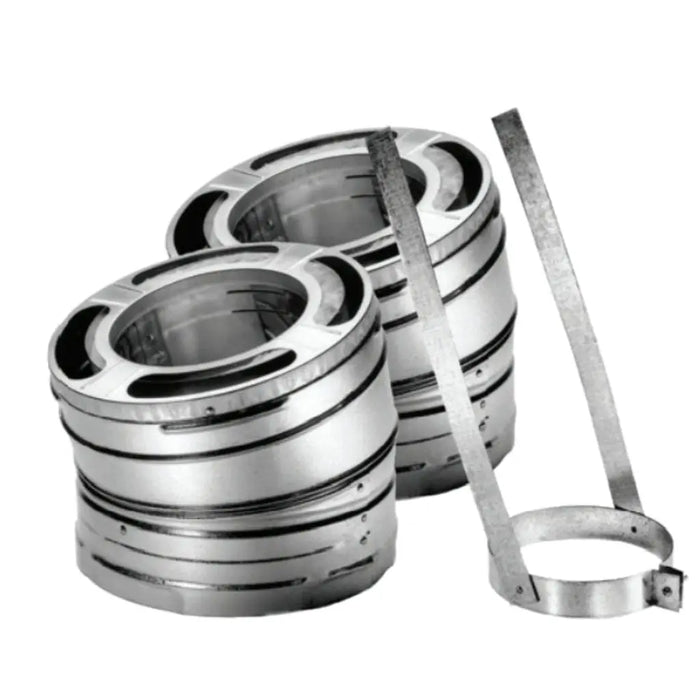

DuraVent DuraPlus 6" 30 Degree Galvalume Elbow Kit
The DuraVent DuraPlus 6" 30 Degree Galvalume Elbow Kit is a high-performance triple-wall chimney system accessory designed to provide safe directional offsets in wood stove chimney installations and other all-fuel venting applications. Engineered with advanced ceramic blanket insulation and an air-space layer, this insulated chimney elbow kit maintains a cool outer surface while ensuring a strong internal draft for improved stove efficiency. The secure insulation eliminates hot spots and enhances chimney venting safety, while allowing controlled liner expansion during a creosote fire for superior durability and protection.
Built for continuous operation at flue gas temperatures up to 1000°F, the DuraVent DuraPlus 6-inch 30-degree galvalume elbow kit meets stringent UL-listed chimney standards, including one hour at 1400°F and three 2100°F chimney fire tests. This durable galvalume chimney component delivers a reliable, code-compliant solution for complex chimney venting system installations requiring larger directional offsets.
Features
-
Ideal Chimney Offset Solution: Designed for 6-inch triple-wall chimney systems, the DuraVent DuraPlus 30-degree galvalume elbow kit is used to safely create offsets around rafters, ridgepoles, joists, and other roof obstructions, supporting flexible chimney venting system installation.
-
Complete Elbow Kit Configuration: Supports complex installations where a pair of elbows is required to return the chimney back to vertical, making it essential for professional wood stove chimney pipe routing and offset alignment.
-
360° Swivel Base Design: Elbows feature a 360-degree swivel base, allowing easier alignment during installation while maintaining a fixed 30-degree angle for precise triple-wall chimney routing and venting efficiency.
-
UL 103 Code Compliance: Designed in accordance with UL 103 chimney standards, offsets greater than 30 degrees are not permitted, ensuring safe, code-compliant chimney system installation and reliable long-term performance.
-
Durable Galvalume Construction: Built with a corrosion-resistant galvalume (K) outer wall, providing long-lasting durability and protection for demanding all-fuel chimney systems in residential applications.
Specification
| Specification |
Details |
| Item Number |
6DP-E30K |
| Series |
DuraPlus (6"-8") |
| Product Type |
Elbow Kit |
| Inside Diameter |
6" |
| A |
4 1/2” |
| B |
4 3/4” |
Downloads
Warning: This product can expose you to Chromium, which is known in the state of California to cause cancer, congenital disabilities, or other reproductive harm. For more information, see CA Prop 65 Warning
