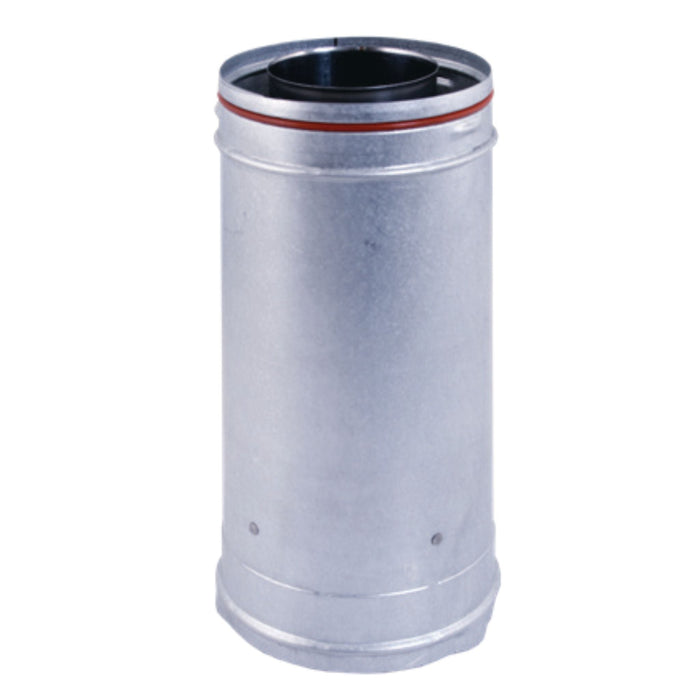

DuraVent Concentric Vent System 3" Vent Pipe Length
The DuraVent Concentric Vent System 3" Vent Pipe Length is a premium concentric vent pipe engineered for safe, efficient venting of condensing and non-condensing gas appliances. Featuring a UL 1738-approved super-ferritic stainless steel inner wall, this vent pipe delivers exceptional corrosion resistance and long-term durability. The innovative twist-lock connection eliminates the need for clamps or mechanical fasteners, reducing installation time while creating a secure, gas-tight seal. With its 3-inch inner diameter and 5-inch outer diameter, the system allows both exhaust and combustion air to pass through a single roof or wall penetration.
Designed for professional HVAC installations, the DuraVent Concentric Vent System includes integrated O-rings on both the inner wall and outer casing to prevent exhaust and combustion air leakage. A built-in condensate management system helps eliminate standing moisture for improved performance and appliance protection. Multiple pipe lengths and telescoping extensions reduce field cutting, while optional transition adapters simplify conversions from co-linear to coaxial venting systems, making this vent pipe an ideal choice for high-efficiency gas heating applications.
Features
-
DuraVent Concentric Vent System 3" Vent Pipe Length: High-performance concentric vent pipe designed for condensing and non-condensing gas appliances, delivering safe and efficient exhaust venting.
-
Fully Unitized Twist-Lock Construction: Features a durable 3-inch twist-lock vent pipe design for fast installation without clamps or mechanical fasteners, creating a secure gas-tight connection.
-
Vertical & Horizontal Installation: Suitable for both vertical and horizontal venting applications, providing flexibility for residential and commercial HVAC systems.
-
Premium Double-Wall Construction: Built with a stainless steel welded-seam inner wall and a Galvalume welded-seam outer wall for exceptional corrosion resistance and long-lasting durability.
-
Dual O-Ring Gasket Sealing: Both the inner and outer walls are sealed with O-ring gaskets, helping prevent exhaust gas and combustion air leakage for improved system efficiency.
-
Multiple Finish Options: Available with a durable Galvalume or painted black outer finish to complement indoor and outdoor vent installations.
-
Accurate Installation Length: To determine the installed vent length, subtract 1½ inches from each pipe section, ensuring proper vent system planning and fit.
-
Ideal for High-Efficiency Venting: Compatible with DuraVent Concentric Vent System components, making it an excellent choice for high-efficiency boilers, furnaces, water heaters, and gas-fired appliances.
Specifications
| Attribute |
Specification |
| Brand |
DuraVent |
| Model |
35CVS-06, 35CVS-06B, 35CVS-12, 35CVS-12B, 35CVS-24, 35CVS-24B, 35CVS-36, 35CVS-36B
|
| Series |
3" x 5" Concentric Vent System |
| Product Type |
Vent Pipe |
| Inside Diameter |
3" |
| Outside Diameter |
5" |
| Length (A) |
6" 12" 24" 36" |
Warranty
- Limited Lifetime Warranty
