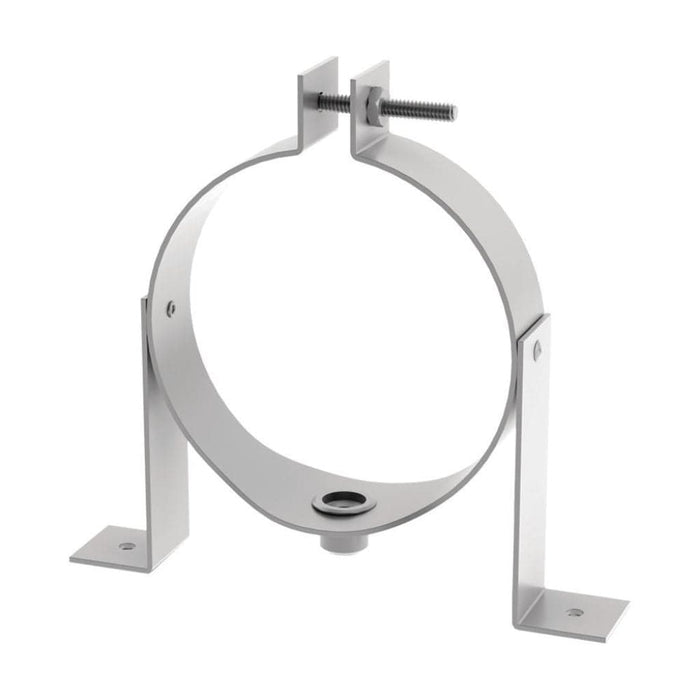

DuraVent 2"-8" Inner Diameter PolyPro Wall Strap Metal
The DuraVent 2"-8" Inner Diameter PolyPro Wall Strap Metal is a durable vent support accessory designed to secure and stabilize DuraVent PolyPro venting systems for high-efficiency condensing gas appliances. Engineered for use with residential and commercial HVAC installations, this metal wall strap helps maintain proper vent alignment and provides dependable support for PolyPro polypropylene vent pipes connected to boilers, furnaces, and water heaters.
Built to complement the advanced DuraVent PolyPro vent system, this wall strap supports safe and efficient vent routing while helping ensure a professional installation. PolyPro vent components are engineered for temperatures up to 230°F (110°C) and feature an effective condensation management system. This reliable PolyPro wall support bracket provides long-lasting durability, secure installation, and code-compliant performance for modern condensing appliance vent applications.
Features
-
PolyPro Wall Strap Metal for Vent Support: The DuraVent 2"-8" Inner Diameter PolyPro Wall Strap Metal is a durable vent pipe support accessory designed to stabilize single-wall and concentric PolyPro vent systems.
-
Supports Vertical and Horizontal Vent Runs: Engineered to support PolyPro pipe installations, including vertical rises and horizontal runs, when installed according to manufacturer instructions.
-
Adjustable 360° Rotating Strap Legs: Features versatile rotating wall strap legs that can pivot up to 360 degrees for flexible installation positioning and easier vent alignment.
-
Compatible with Single-Wall and Concentric Offsets: Provides reliable support for vent offsets and pipe routing configurations in high-efficiency condensing appliance vent systems.
-
Accepts Standard 3/8" All-Thread: Designed to work with standard 3/8-inch all-thread hardware for secure and professional vent mounting.
-
Available in Galvanized or Stainless Steel: Offered in durable galvanized steel or stainless steel construction options for corrosion resistance and long-term performance.
-
Professional HVAC Venting Support Solution: Ideal for DuraVent PolyPro vent systems, supporting safe, stable, and code-compliant installations for condensing boilers, furnaces, and water heaters.
Specifications
| Model |
Dimension |
| 2PPS-WSM1/SS1 |
2" I.D x 3.625" x (A) x 4.875" (B) |
| 3PPS-WSM1/SS1 |
3" I.D x 4.375" (A) x 5.25" (B) |
| 4PPS-WSM1/SS1 |
4" I.D x 5.125" (A) x 5.625" (B) |
| 5PPS-WSM1 |
5" I.D x 6.375" (A) x 6.75" (B) |
| 6PPS-WSM1/SS1 |
6" I.D x 7.125" (A) x 7.625" (B) |
| 8PPS-WSM1 |
8" I.D x 9.125" (A) x 9.625" (B) |
| Finish |
Galvanized | Stainless Steel |
| Clearance |
0” clearance to combustibles / vertical installations |
| Listings |
ULC S636 is Listed as a Class IIA, IIB, and IIC vent system. |
| Warranty |
10-years Limited warranty |
