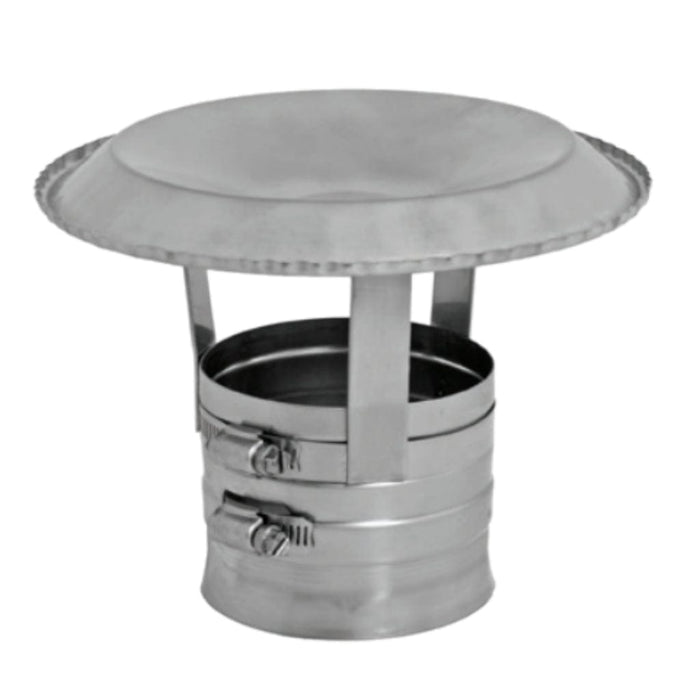

DuraVent 10"-12" Inner Diameter DuraFlex SS Cap
The DuraVent 10"-12" Inner Diameter DuraFlex SS Cap is a durable chimney liner accessory designed to provide a secure termination and closure solution for DuraFlex stainless steel chimney relining systems. Built for professional masonry chimney restoration, this cap helps protect the venting system while supporting proper chimney draft, flue gas flow, and overall vent performance for approved heating appliances.
Compatible with DuraFlex 304, DuraFlex 316, DuraFlex Pro, and DuraFlex SW flexible chimney liners, the DuraFlex SS Cap delivers reliable protection and long-lasting performance. Its quality construction makes it an ideal component for wood-burning stoves, fireplace inserts, and non-condensing gas or oil appliance chimney liner installations, ensuring a safe and efficient venting system.
Features
-
DuraFlex Stainless Steel Chimney Cap Termination: The DuraVent 10"-12" Inner Diameter DuraFlex SS Cap is designed to terminate a chimney relining system at the top of a masonry chimney for a secure and professional finish.
-
Supports Flexible Chimney Liner Installation: Provides reliable support for DuraFlex stainless steel chimney liners using a fast connect band for a secure and efficient connection.
-
Creates Weather-Resistant Chimney Seal: Helps form a proper seal between the storm collar and top plate, protecting the masonry chimney liner system from moisture and outdoor elements.
-
Removable Top for Easy Maintenance: Features a removable top section that allows convenient access for chimney inspection, cleaning, and maintenance.
-
Compatible with DuraFlex Relining Systems: Ideal for wood stove chimney liners, fireplace inserts, and solid-fuel appliance venting applications.
-
Optional Spark Arrestor Compatibility: Supports an optional chimney spark arrestor for enhanced safety and protection against escaping embers.
-
Durable Stainless Steel Construction: Built for long-lasting performance in stainless steel chimney liner installations, providing dependable chimney termination and venting support.
Specifications
| Model |
Size |
| 10DFS-RCSC |
10" (I.D) x 19" (O.D) x 8" (H) |
| 12DFS-RCSC |
12" (I.D) x 21" (O.D) x 8" (H) |
| Construction |
Single-Wall |
| Clearance |
0” clearance for gas, oil, and pellet applications. |
| Clearance |
1” clearance to masonry for wood-burning |
| Listings |
Listed to UL 1777 and ULC S635 (MH45609). |
| Warranty |
Limited lifetime warranty |
